Wall traveling jib crane, also known as a wall running jib crane, is a space-saving lifting solution designed for efficient material handling along walls or elevated structures. Unlike traditional floor-mounted jib cranes, it does not require floor space or additional concrete foundations, making it especially suitable for workshops, assembly lines, warehouses, and production areas with limited floor clearance.

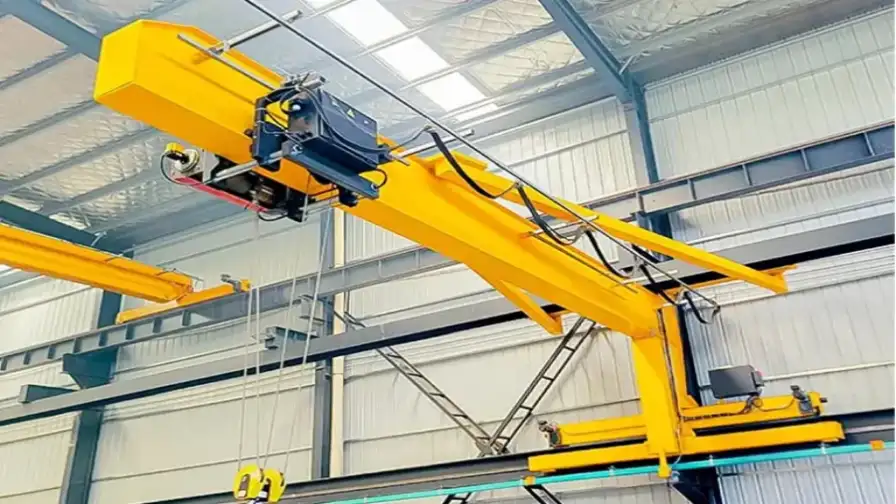

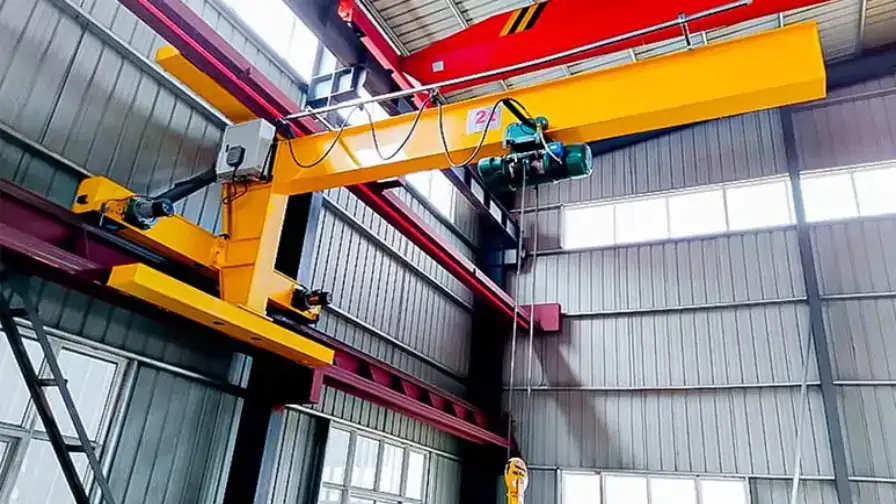

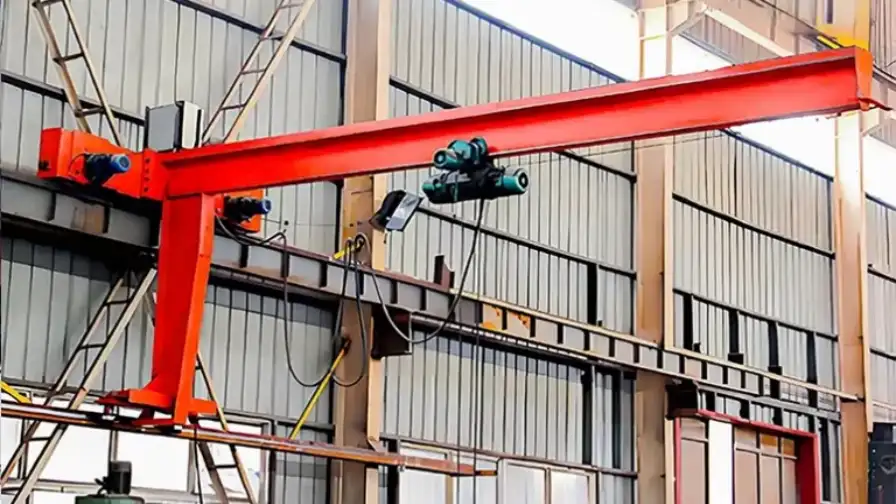

The wall traveling jib crane is installed on ASCE rails fixed to the building columns or elevated structures, allowing the entire crane system to travel smoothly along the designated working area. The electric traveling mechanism enables precise longitudinal movement, while the electric hoist performs horizontal movement along the jib arm and vertical lifting operations, providing flexible three-dimensional material handling.

With lifting capacities of up to 15 tons and customizable rail spans, the wall running jib crane provides excellent coverage and operational flexibility for large workshops, warehouses, and industrial facilities. It is particularly suitable for frequent lifting operations near walls where traditional overhead cranes may not be practical.

Wall traveling jib cranes are widely used in large-span workshops, warehouses, and industrial facilities where frequent lifting operations are required near walls or production areas. They provide an efficient alternative lifting solution for applications requiring wide coverage and flexible movement.

Large Industrial Workshops
Used for production line material transfer, heavy equipment installation, machine tool loading and unloading, and equipment maintenance operations.

Warehousing and Logistics Centers
Applied for warehouse cargo handling, high-level shelf access, logistics sorting, and material transfer in large storage facilities.

Manufacturing and Assembly Workshops
Suitable for assembly line operations, heavy component lifting, semi-finished product transfer, and production equipment maintenance.

Automotive and Machinery Industries
Used for lifting mechanical parts, molds, workpieces, and components during manufacturing and assembly processes.

Ports and Industrial Maintenance Areas
Provides auxiliary lifting support for equipment repair, component replacement, and maintenance operations in large industrial sites.

Compact Structural Design

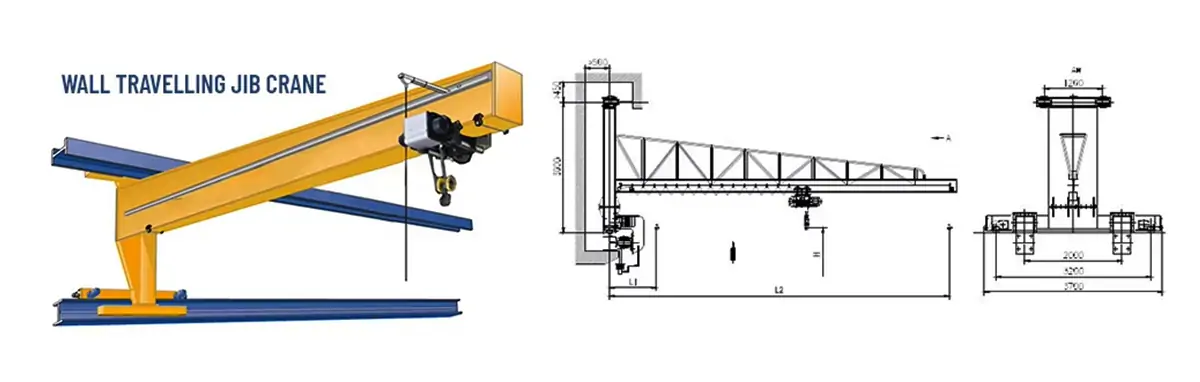

The crane consists mainly of a supporting bracket, traveling mechanism, cantilever arm, and electric hoist. Its compact structure simplifies installation and reduces space requirements.

Flexible Slewing Function
The cantilever arm can rotate up to 180°, allowing flexible coverage of the working area and improving lifting efficiency.

Wall-Mounted Rail Installation
The traveling rail can be directly installed on reinforced concrete columns or steel structures of buildings, eliminating the need for additional floor foundations and reducing installation costs.

Large Working Coverage
The crane can move along the wall-mounted rail system, enabling efficient material transfer across extended work zones without interfering with existing overhead crane operations.

Designed for Frequent Lifting Operations
Optimized for short-distance, high-frequency material handling tasks, reducing manual labor intensity and improving production efficiency.

Space-Saving Solution
By utilizing vertical building structures, the crane achieves three-dimensional material transportation without occupying valuable floor space.

Easy Maintenance and Operation
The simple mechanical structure allows convenient operation, inspection, and maintenance, helping reduce long-term operating costs.

Energy Efficient Performance
The electric drive system provides smooth movement, stable operation, and lower energy consumption compared with traditional handling methods.

Nucleon provides customized wall traveling jib crane solutions according to different working conditions and facility layouts. The crane system can be designed based on lifting capacity, rail length, jib arm size, lifting height, hoist type, control mode, and installation requirements.

With advantages of space saving, flexible movement, and reliable performance, the wall running jib crane is an ideal choice for improving material handling efficiency in modern industrial facilities. Nucleon’s engineering team offers professional design, manufacturing, installation guidance, and after-sales support to ensure a reliable lifting solution tailored to each customer's application.
