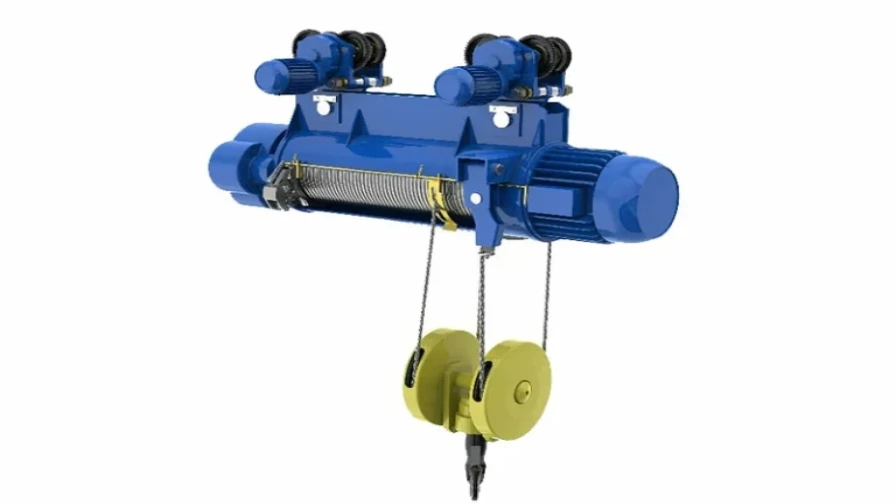

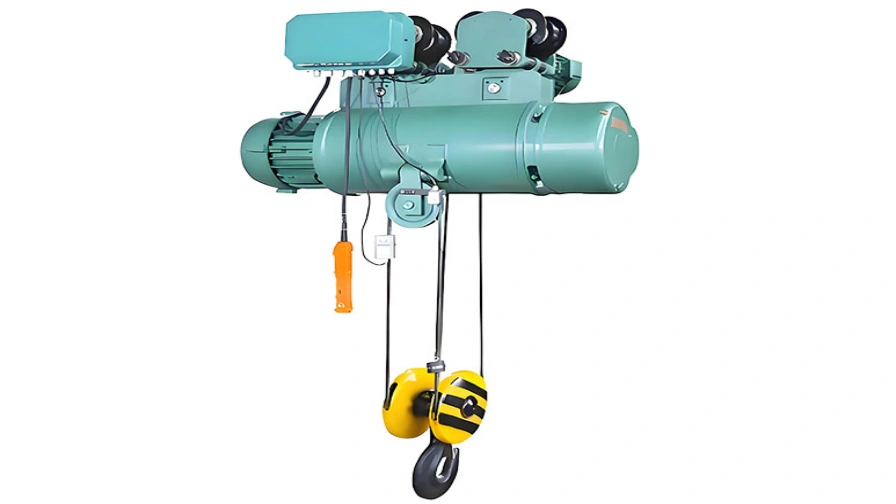

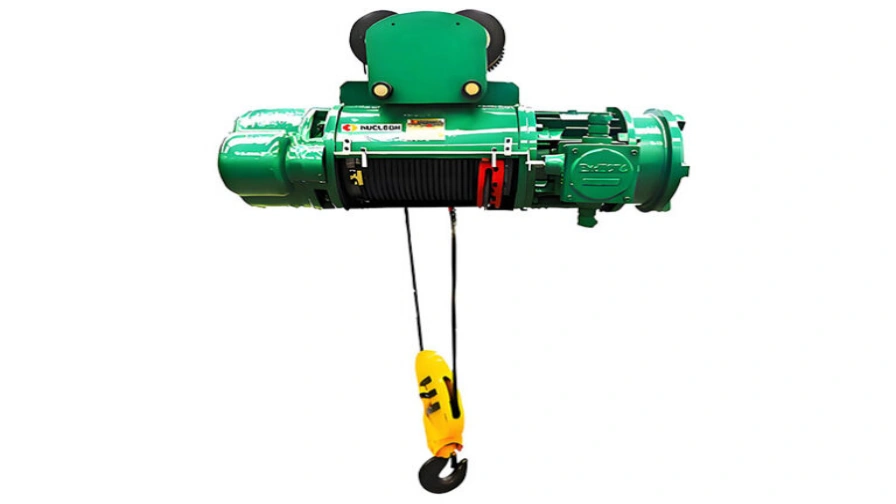

CD/MD model wire rope electric hoist is a compact and reliable lifting device widely used as the lifting mechanism of single-girder overhead cranes, gantry cranes, and jib cranes. With simple modifications, it can also be used as an independent electric winch for various lifting applications.

The CD electric hoist features a single-speed lifting design, which is suitable for general material handling operations. The MD electric hoist adopts a dual-speed lifting system, providing both normal and low-speed operation. The low-speed function enables more precise positioning, making it suitable for applications such as precision loading and unloading, sand box molding, and equipment maintenance.

CD/MD electric wire rope hoists are widely used in factories, mines, ports, warehouses, workshops, and cargo handling areas. They provide an efficient and economical lifting solution for improving production efficiency and working conditions.

For heavier lifting requirements, Nucleon also provides high-capacity electric hoists, including HC16t, HC20t, HC32t, SHC40t, SHC50t, and SHC63t models. With professional engineering support, customized lifting solutions can be provided according to specific working conditions and customer requirements.

CD1 and MD1 electric wire rope hoists are widely used in:

Manufacturing plants

Warehouses and workshops

Construction sites

Mining and metallurgical industries

Equipment maintenance and assembly lines

Performance

Fast and Stable Lifting:

The hoist provides smooth lifting performance with a lifting speed of up to 8m/min, enabling efficient completion of routine lifting operations.

Reliable Braking System:
Equipped with a safe and dependable braking system, ensuring stable load holding and improved operational safety.

Easy Operation:
Simple control design allows convenient starting and operation, reducing operator training requirements and improving work efficiency.

Structure

High-Strength Construction:
Made with durable steel materials and optimized structural design, providing excellent strength, corrosion resistance, and long service life.

Compact Design:
The small and lightweight structure requires less installation space, making it suitable for workshops and facilities with limited space.

Smooth Gear Transmission:
Precision gear components ensure stable operation, reducing vibration and noise during lifting.

Nucleon provides flexible customization options to meet different lifting requirements:

Lifting Capacity: 0.5T to 20T available

Lifting Height: Standard 6m to 30m, customizable according to facility requirements

Travel Speed: Single-speed, dual-speed, or variable frequency speed control

Trolley Operation: Manual push trolley or electric trolley

Working Class: M3, M4, M5, and other duty classifications

Power Supply Voltage: 380V/415V/440V/460V, compatible with different regions

Control Method: Pendant control, remote control, or combined control mode

Protection Rating: IP54/IP55/IP65 options for dusty, humid, or outdoor environments

Special Conditions: Explosion-proof, high-temperature resistant, or corrosion-resistant configurations

Installation Methods: Single-girder traveling type, fixed type, or low-headroom structure

To select the most suitable CD/MD electric hoist configuration, please provide information about lifting capacity, lifting height, working frequency, and operating environment. Our engineering team will provide a customized solution and quotation based on your requirements.

(Customized lifting heights and voltage available upon request.)
