1. What Defines a European Electric Hoist?
A European electric hoist is more than just a regional classification; it signifies a specific design philosophy rooted in high performance and stringent safety standards. Unlike conventional hoists, which can be bulky and heavy, the European style prioritizes a compact and lightweight structure without sacrificing lifting capacity. This is achieved through the use of high-strength materials and optimized engineering, resulting in a lower headroom requirement. This key feature allows facilities to maximize their usable lifting height within an existing building, a critical factor for warehouse and workshop efficiency.
2. Advanced Engineering & Core Technologies

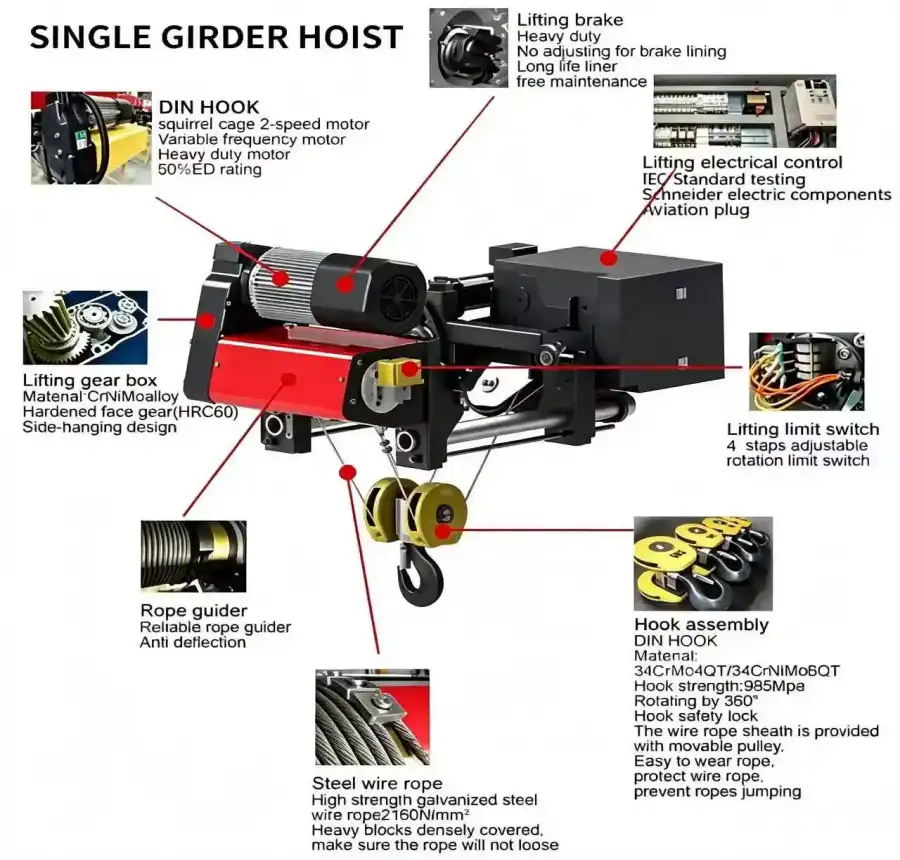

The superiority of a European electric hoist lies in its sophisticated internal components and control systems, designed for precision and durability.
▪High-Efficiency Motor & Gearbox: At the heart of the system is a premium-duty motor (typically Class F or H insulation) coupled with a hardened, ground helical gearbox. This combination ensures smooth, quiet operation, high thermal efficiency, and exceptional resistance to wear, even under continuous heavy-duty cycles.
▪Variable Frequency Drive (VFD) Control: A hallmark of modern European hoists is the integration of VFD technology. This allows for infinitely variable lifting and traveling speeds, enabling soft starts and soft stops. The result is unparalleled load control, the elimination of load swing, and a significant reduction in mechanical shock to the entire crane system.
▪Robust Safety Systems: Safety is paramount. European hoists are equipped with a comprehensive suite of protective features, including:
🛑Dual Braking Systems: An independent disc brake on the motor and a regenerative electrical brake provide redundant stopping power for maximum security.
⚖️Overload Limiters: These devices prevent the hoist from lifting a load that exceeds its rated capacity, protecting both the equipment and personnel.
📏Upper and Lower Limit Switches: These automatic cut-offs prevent the hook block from over-traveling, avoiding dangerous collisions with the drum or the ground.
▪Durable Wire Rope & Hook: High-tensile, rotation-resistant wire rope is used to ensure longevity and safety. The forged alloy steel hook, often equipped with a safety latch, is designed to withstand extreme stress and is typically heat-treated for added durability.
3. Strategic Advantages for Your Business
Investing in a European electric hoist translates into tangible benefits that impact your bottom line.
▪Maximized Building Cube: The low headroom design means you gain valuable lifting height. In a new facility, this can reduce the required height of the building structure, leading to significant construction cost savings.
▪Enhanced Productivity: The precision control offered by VFDs allows operators to position loads faster and more accurately, streamlining workflows and reducing cycle times.
▪Reduced Maintenance Costs: The use of high-quality, long-life components and sealed-for-life gearboxes minimizes the need for frequent maintenance and part replacements, lowering the total cost of ownership.
▪Improved Safety & Compliance: By adhering to rigorous European standards (such as FEM and DIN), these hoists provide a safer working environment, helping you meet and exceed occupational health and safety regulations.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between a European hoist and a standard electric hoist?
A: The primary differences are design and performance. European hoists are significantly more compact and lighter, offering a lower headroom and greater hook approach. They also feature more advanced technology, such as VFDs for precise control and higher duty cycle ratings (e.g., FEM 2m to 5m), making them suitable for more intensive use.
Q2: Are European electric hoists suitable for harsh environments?
A: Absolutely. Many models are available with optional protections, such as IP54 or IP55 rated motors and electrical enclosures, which guard against dust and water ingress. They can also be specified with special coatings or made from stainless steel for use in corrosive or washdown environments like food processing or chemical plants.
Q3: How does the Variable Frequency Drive (VFD) improve operation?
A: A VFD allows the operator to smoothly control the speed of the hoist. Instead of a simple on/off motion, you can lift or lower a delicate load with extreme precision at a very slow speed, then move it quickly across an open space. This versatility improves safety, reduces load swing, and lessens mechanical stress on the crane runway.
