If you are looking for a cost‑effective lifting tool for fixed workstations, machine loading‑unloading or assembly zones in your shop, a big overhead bridge crane is often overkill. That’s exactly where the Floor‑Mounted Slewing Jib Crane (Pillar Jib Crane / Free‑Standing Jib Crane) comes in. It bolts directly to your concrete floor, delivers 180‑360° rotation, and handles frequent short‑range lifting jobs smoothly.
1. What Is Nucleon Floor‑Mounted Slewing Jib Crane?

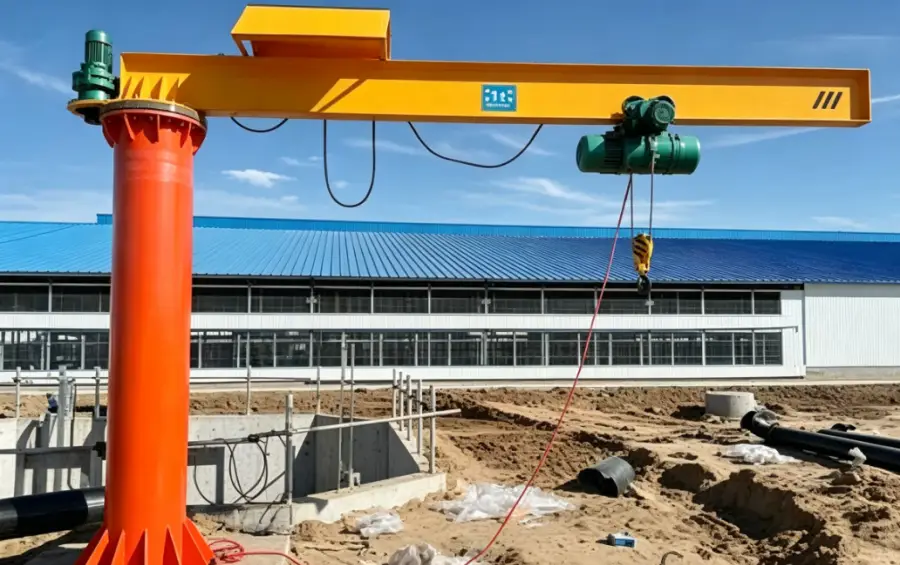

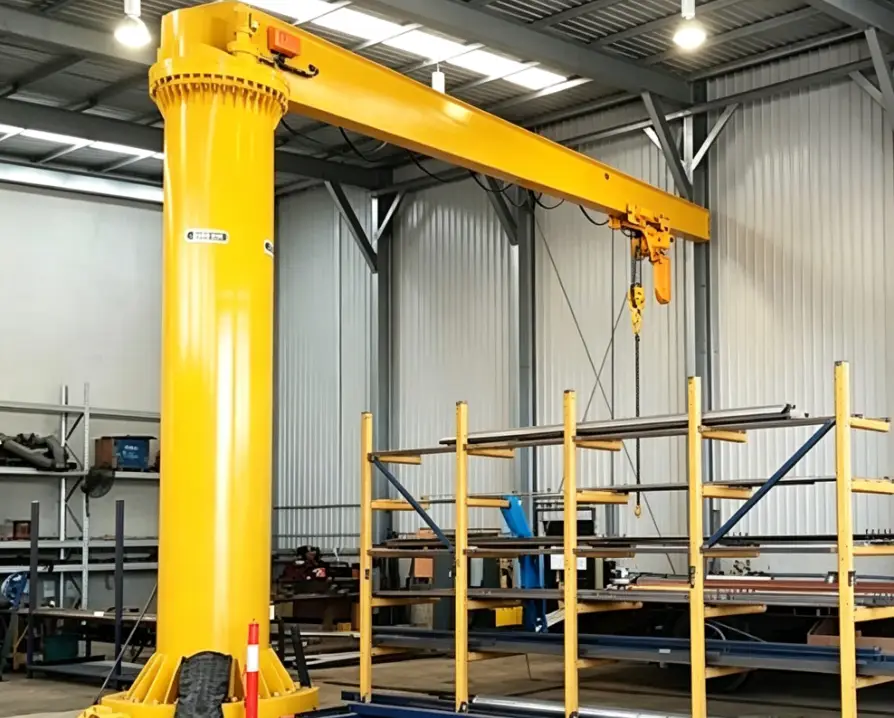

Nucleon floor‑mounted slewing jib crane is a light‑to‑medium duty workstation lifting unit. It consists of a heavy‑duty base column, slewing jib beam, rotation mechanism and electric hoist (chain hoist or wire rope hoist). The whole unit is anchored to factory floor, no reliance on building roof or wall structures.
Typical capacity ranges 0.25‑10 tons, jib working radius 2‑8m, lifting height 1‑6m, working duty class A3‑A4. You can choose manual slewing or electric motor‑driven slewing. It covers a circular working zone around the pillar, perfect for repetitive lifting at fixed spots in workshops, maintenance bays and warehouses.
2. Core Advantages of Nucleon Floor‑Mounted Slewing Jib Crane
Self‑support floor‑mount design: Fix to concrete foundation only, no modification to plant steel roof or wall frames. Great for old workshops or temporary production zones。
Flexible 180‑360° slewing coverage: Easily swing loads to different positions within its radius, ideal for machine loading, component assembly and parts transfer.
Simple & fast installation: Compact modular structure, short on‑site assembly time, easy to relocate if your workshop layout changes.
Precise lightweight handling: Match with electric chain hoist or wire rope hoist, pendant push‑button or wireless remote control for accurate load positioning.
Economical investment: Lower purchase and installation cost compared with overhead cranes, easy maintenance, low spare‑part expense.
Complete safety protection: Travel limit switches, hoist upper/lower limit, overload protection and mechanical brake system to avoid operational risks.
3. Common Real‑World Application Scenarios
Machining workshops: Loading and unloading workpieces for CNC lathes, milling machines and cutting equipment.
Assembly production lines: Lifting components for equipment assembly, small unit fitting.
Maintenance & repair zone: Handling spare parts, motor and gearbox disassembly & reassembly.
Warehouse & storage area: Short‑range stacking and unpacking of small‑medium goods.
4. Nucleon Floor‑Mounted Slewing Jib Crane Standard Technical Table
Lifting Capacity: 0.25t-10t (customized available)
Jib Effective Radius: 2-8m
Lifting Height: 1-6m customizable
Slewing Angle: 180° / 270° / 360°
Slewing Mode: Manual slewing / Electric motor slewing
Duty Class: A3 / A4
Hoist Option: Electric chain hoist or wire rope hoist
Control Mode: Pendant pushbutton control, optional wireless remote control
Power Supply: 380-415V, 3phase 50Hz / match local site voltage
Safety Devices: Overload limiter, upper & lower lifting limit, jib travel limit, mechanical brake
5. Key Points Before You Send Inquiry
Confirm your maximum lifting load weight.
Tell us effective jib radius and required lifting height.
Select slewing mode: manual or electric rotation, rotation angle requirement.
Check your concrete foundation condition for floor anchoring.
Specify indoor or outdoor working environment, local power voltage & frequency.
6. Final Summary
For frequent lifting tasks at fixed workstations, floor‑mounted slewing jib crane is a practical, budget‑friendly lifting solution. It does not require complex building modifications, brings flexible circular working coverage and improves your workshop handling efficiency.
Nucleon can tailor floor‑mounted slewing jib cranes according to your actual site conditions. Drop your parameters and working requirements, and we will provide custom layout proposal and competitive quotation.
