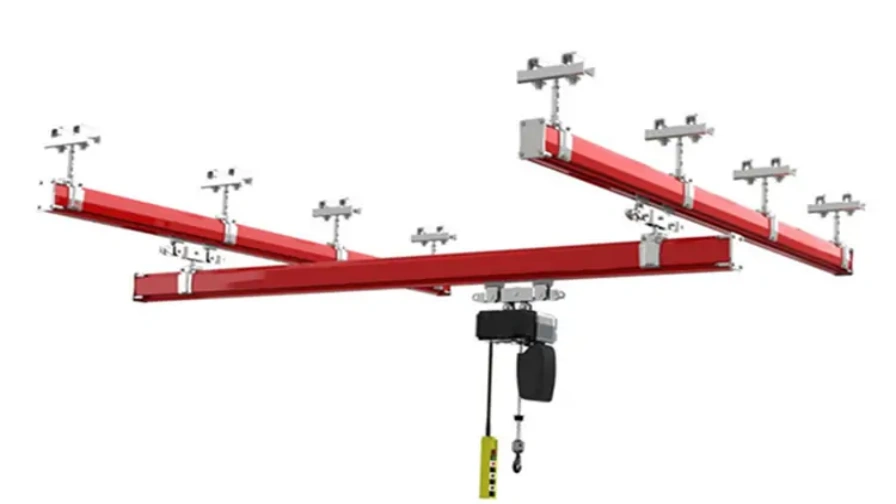

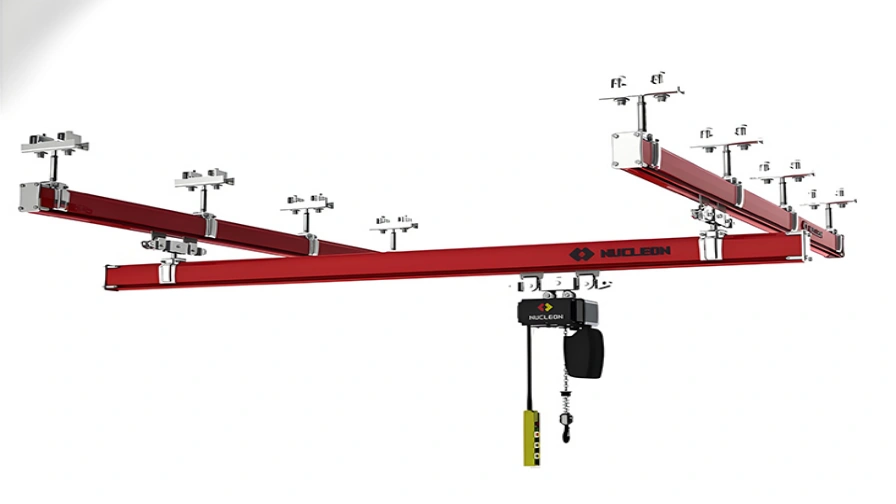

Freestanding Bridge Crane is a flexible and lightweight material handling system designed for efficient transportation of goods within workshops, production areas, and assembly stations. The system consists of suspension components, runway tracks, switches, bridge trolley, electric hoist, mobile power supply system, and control devices.

Unlike traditional overhead cranes that require large supporting structures, this freestanding overhead crane can be installed directly on existing factory roof beams, steel structures, or dedicated support frames. The crane travels along the lower flange of I-beams, H-beams, or concrete beams through specially designed suspension devices, providing stable and reliable operation.

The suspension structure features a self-locking mechanism to ensure safety and structural stability during operation. With its lightweight design, smooth movement, and precise positioning capability, this crane system enables fast and efficient material transfer while reducing manual handling intensity.

Made from high-strength aluminum alloy profiles, the system combines low weight, excellent durability, and ergonomic operation. It is widely used with balanced lifting devices, pneumatic hoists, electric chain hoists, and other auxiliary handling equipment to create efficient workstation lifting solutions.

Main Components

Suspension Device

The suspension components connect the crane track system with the building structure or support frame. The self-locking design improves stability and ensures safe operation during lifting activities.

Runway Track System

The lightweight track structure provides smooth horizontal movement and supports customized layouts including straight tracks, curves, and switching sections.

Bridge Trolley and Hoisting Unit

The trolley travels along the track and integrates with electric chain hoists, pneumatic hoists, or other lifting equipment to achieve accurate material positioning.

Power Supply and Control System

The mobile power supply and control devices provide convenient operation and reliable energy transmission for daily lifting tasks.

Freestanding bridge cranes are widely used in industries requiring flexible and lightweight material handling solutions.

Assembly Workshops

Used for component transportation, workstation supply, and production line material movement.

Manufacturing Facilities

Suitable for handling tools, machine parts, semi-finished products, and lightweight industrial materials.

Maintenance Stations

Provides convenient lifting assistance for equipment repair, inspection, and replacement operations.

Warehouses and Logistics Areas

Helps improve internal material flow and reduce manual transportation workload.

Precision Production Areas

Ideal for applications requiring smooth movement, accurate positioning, and frequent handling operations.

Flexible Layout Configuration

The modular design provides multiple options for track profiles, switches, curves, and rotation systems. The crane layout can be customized according to workshop space and production requirements, including applications requiring longer spans.

Fast Installation

Pre-engineered components are supplied with optimized assembly structures and connection methods, reducing installation time and simplifying commissioning.

Lightweight and Easy Operation

The high-strength aluminum alloy structure significantly reduces system weight, allowing smooth movement with lower operating effort and improved operator comfort.

High Space Utilization

The crane system does not require complex ground foundations or additional support columns, helping maximize available production space.

Precise Material Handling

The lightweight traveling mechanism enables smooth movement and accurate positioning, improving work efficiency and reducing labor intensity.

Low Maintenance Cost

The durable modular structure requires minimal maintenance, provides long service life, and reduces overall operating expenses.

Customized Freestanding Bridge Crane Solutions

We provide customized freestanding overhead crane systems according to different workshop layouts, lifting requirements, and production processes.

Customization Options

• Track layout design

• Span length

• Lifting capacity

• Installation method

• Hoist type selection

• Control mode

• Power supply system

Our engineering team develops optimized lightweight crane solutions to improve material flow efficiency, installation flexibility, and long-term operational reliability.
