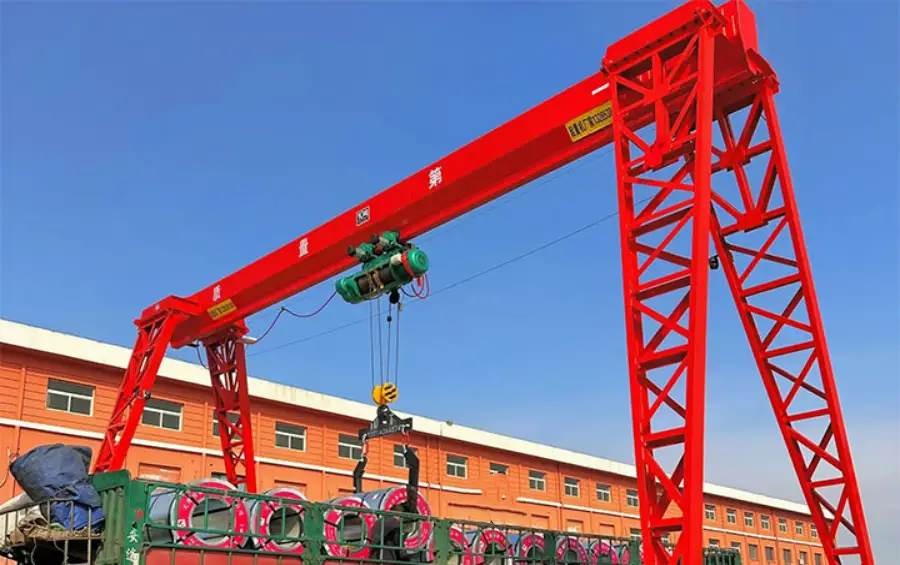

1. What is a Gantry Crane with Electric Hoist?
A gantry crane with electric hoist is a type of overhead lifting equipment that incorporates one or two main beams supported by upright legs. Unlike bridge cranes that rely on elevated building runways, gantry cranes can traverse on wheels, tracks, or rails directly on the ground. The lifting mechanism is powered by an electric hoist, which travels horizontally along the main beam (via a trolley) and handles vertical lifting.These systems are highly modular and come in various configurations, including single-girder and double-girder designs. The electric hoist provides precise, motorized control for lifting, lowering, and traversing, significantly boosting productivity while reducing manual labor and physical strain.
2. Key Advantages for Modern Industries
Integrating a gantry crane with an electric hoist into your workflow offers numerous strategic benefits:
●Unmatched Flexibility and Mobility: Many gantry cranes are designed with rubber tires or portable wheel systems, allowing them to be easily repositioned across different work zones without the need for permanent ground tracks. This makes them ideal for temporary projects, outdoor yards, and multi-purpose facilities.
●Cost-Effective Infrastructure: Because they do not require elevated runways or extensive structural modifications to existing buildings, gantry cranes significantly reduce initial infrastructure and installation costs.
●Enhanced Operational Efficiency: The electric hoist replaces manual chain blocks, offering faster lifting speeds, precise load positioning, and the ability to handle heavier loads with ease. Advanced models feature variable frequency drives (VFD) for smooth, sway-free operation.
●Scalability and Customization: These cranes can be tailored to specific needs, ranging from light-duty single-girder models for small workshops to heavy-duty double-girder configurations for massive industrial loads.
3. Critical Application Scenarios
The adaptability of the gantry crane with electric hoist makes it suitable for a wide array of environments:
●Manufacturing & Workshops: Handling raw materials, moving heavy machinery, and supporting assembly lines in indoor facilities.
●Outdoor Storage Yards & Lumber Yards: Loading and unloading trucks, stacking heavy materials, and managing inventory in open-air environments.
●Construction & Infrastructure: Lifting prefabricated concrete sections, steel beams, and heavy equipment on-site where permanent crane installations are unfeasible.
●Shipping & Logistics: Assisting in container handling, freight yard operations, and loading docks.
4. Critical Technical Parameters & Selection Criteria
Selecting the right gantry crane with electric hoist requires precise matching of technical parameters to your operational needs:
●Girder Configuration (Single vs. Double): Single-girder cranes are lightweight, cost-effective, and ideal for light-to-medium lifting (typically up to 20 tons). Double-girder cranes offer superior structural rigidity, higher lifting capacities (up to hundreds of tons), and are optimized for heavy-duty, continuous industrial operations.
●Lifting Capacity (SWL): The Safe Working Load dictates the structural thickness of the girders and the tonnage of the electric hoist. Always select a capacity that accommodates your heaviest anticipated load with a safety margin.
●Span and Lifting Height: The span determines the width of the working area the crane can cover. Lifting height must be carefully calculated based on the building's clearance (for indoor use) or the stacking requirements (for outdoor use).
●Mobility Type: Decide between fixed rail-mounted systems (for dedicated, repetitive paths) and tire-mounted mobile gantries (for maximum flexibility and multi-site usage).
●Power Source: While most electric hoists rely on fixed power supplies for continuous high-load operation, mobile gantry cranes can be equipped with diesel generators or hybrid power systems for remote or outdoor sites without grid access.
Frequently Asked Questions
Q1: Can a gantry crane with an electric hoist be used outdoors?
A: Absolutely. Outdoor gantry cranes are specifically engineered to withstand harsh weather. They feature weather-resistant electrical enclosures, anti-corrosion coatings, and specialized wind-protection systems like rail clamps and anchors to ensure stability during storms.
Q2: How does the maintenance of an electric hoist compare to a manual chain block?
A: While electric hoists have more moving parts, they significantly reduce operator fatigue and wear-and-tear caused by manual handling. Routine maintenance involves checking brake pads, lubricating wire ropes, and inspecting electrical contacts. The boost in efficiency and safety far outweighs the minor increase in maintenance tasks.
Q3: Is it difficult to relocate a mobile gantry crane?
A: Not at all. Mobile gantry cranes with rubber tires are designed for easy maneuverability. Many models feature adjustable spans and heights, allowing a single crane to be adapted for different tasks and quickly rolled to a new location as workflow demands change.
