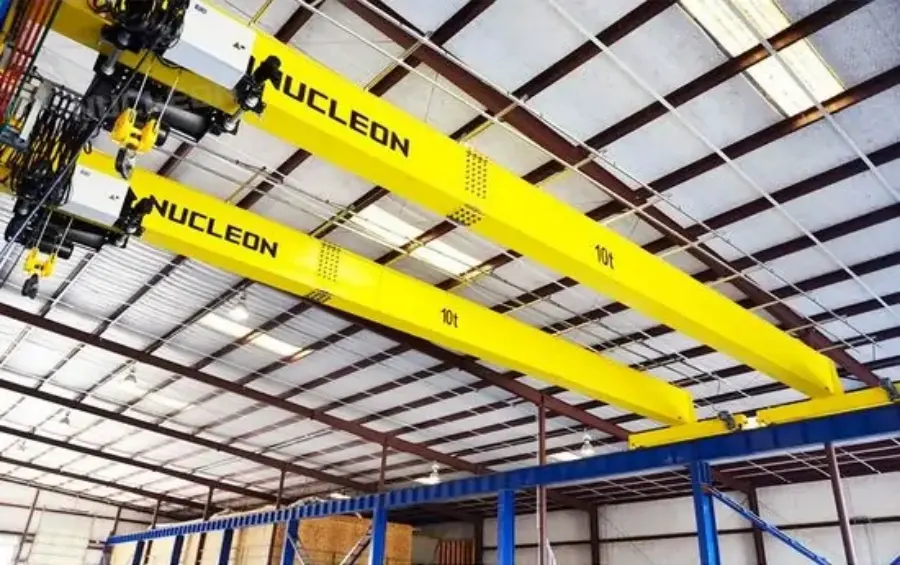

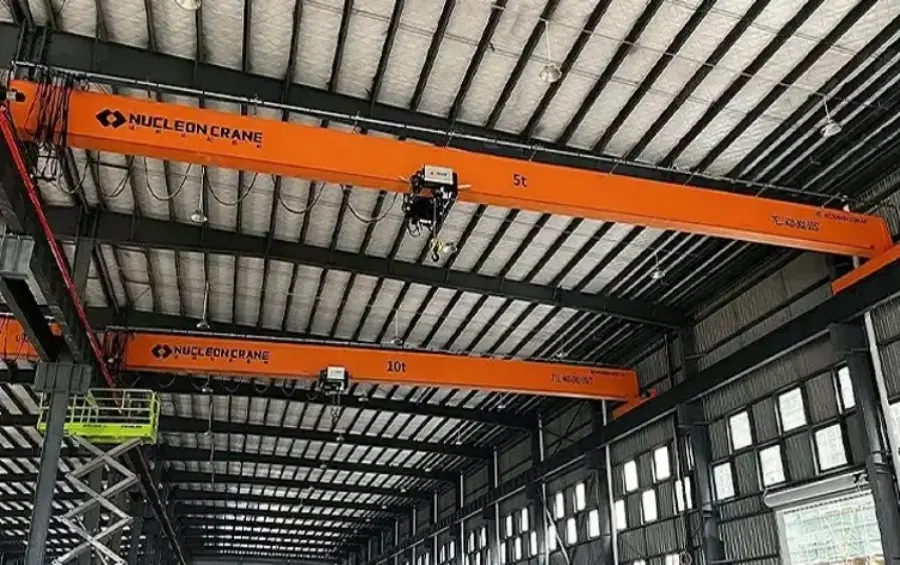

Low headroom overhead cranes are customized lifting equipment specially developed for working environments with limited vertical space. They are also the most popular lifting solution for small and medium-sized manufacturing workshops and warehouse renovation projects worldwide.
What Is a Low Headroom Overhead Crane?
Low headroom models feature a completely redesigned hoist and trolley structure. Adopting an offset or built-in trolley layout, the wire rope hoist is mounted sideways on the main girder instead of hanging vertically downwards. This design greatly cuts down the vertical clearance between the bottom of the main girder and the highest position of the hook.
In short, with the same factory ceiling height, low headroom overhead cranes deliver 30% to 40% more effective lifting height. Existing old workshops can install the equipment directly without reconstructing roofs or corbels, helping clients avoid huge costs for civil engineering renovation.
This product line covers single girder and double girder types, with customizable lifting capacities ranging from 1 ton to 50 tons. All units comply with international lifting standards including CE, ISO and FEM, and can be adjusted to match local industrial voltages and customs certification requirements in countries across the globe.
Five Core Advantages Compared with Standard Overhead Cranes
1.Maximise Vertical Space and Cut Construction & Renovation Costs
Standard overhead cranes demand higher clearance under girders. New factories have to raise ceiling heights, while renovation projects require removing pipelines or reinforcing load-bearing beams. Our low headroom model only needs a minimum workshop clear height of 4.2 meters to handle lifting tasks of 3 to 10 tons. It saves massive costs on factory reconstruction and reduces overall investment by over 30%.
2.Higher Effective Lifting Height for Unrestricted Material Handling
Take a 6-meter-high workshop as an example: a conventional 5-ton overhead crane only allows the hook to reach around 3 meters, while the low headroom version can lift loads above 4 meters. Tall workpieces such as moulds, steel materials and complete machine equipment can be fully hoisted without hitting the ceiling during transport.
3.Compact Structure Ensures Safe Operation in Narrow Spaces
The trolley is equipped with an extended wheelbase, which reduces operating vibration and noise by 15% compared with traditional overhead cranes. For narrow workshops cluttered with overhead pipelines and support columns, the compact design minimizes the movement range of hooks and cargos, effectively lowering collision risks with pipes and walls. The fully sealed dust-proof hoist and maintenance-free bearings cut down regular inspection frequency, ideal for remote overseas factories.
4.Customizable Design to Fit All Special Workshop Conditions
We provide optional upgrades including anti-corrosion, dust-proof and explosion-proof treatments to suit high-temperature, humid and cleanroom environments. The crane supports 50Hz/60Hz global voltage customization with variable frequency soft start lifting, enabling precise positioning within millimetres for precision mould and auto component assembly lines.
5.Easy Installation to Shorten Project Delivery Cycles
For old workshop renovation projects, there is no need to re-lay travel rails or reinforce corbels. The crane can be matched with original load-bearing structures directly. On-site installation and commissioning time is halved compared with standard overhead cranes, allowing clients to put production into operation faster and gain returns sooner.
Applicable Industries & Working Scenarios
1.Old Workshop Renovation Projects
Many processing plants built years ago in Southeast Asia, Africa and the Middle East have a ceiling height of only 4 to 6 meters. When outdated lifting equipment needs replacement, factory owners refuse to tear down roof structures or halt production for renovation. Low headroom overhead cranes serve as the optimal replacement solution, with large volumes of orders from manufacturers in Nigeria, Vietnam, Malaysia and other overseas regions.
2.New Small Processing Plants with Limited Ceiling Height
Light steel workshops for machinery processing, metal forging and mould manufacturing usually adopt low ceilings to control air conditioning and construction expenses. Single girder low headroom overhead cranes with 1–20 ton capacity are perfect for such sites.
3.Production Workshops Dense with Overhead Pipelines
Food cleanrooms, electronic assembly plants and auto production lines are filled with ventilation ducts, fire-fighting cable trays and central air conditioning units on the ceiling. Standard cranes cannot be installed due to severely limited vertical space.
4.Underground Warehouses, Mezzanines and Low-Rise Storage Zones
Underground storage areas and multi-storey workshop mezzanines often have a clear height below 4.5 meters, where steel coils, pallets and semi-finished goods need frequent handling.
5.Export-Oriented Small Manufacturing Factories
Metal, building material and plastic processing workshops for export business feature small-batch, diverse workpieces and compact floor space. They require lifting equipment with flexible operation and sufficient lifting height.
Key Parameters to Prepare Before Purchasing Low Headroom Overhead Cranes
If overseas clients provide the following details, our engineers will release custom drawings and accurate quotations within 24 hours:

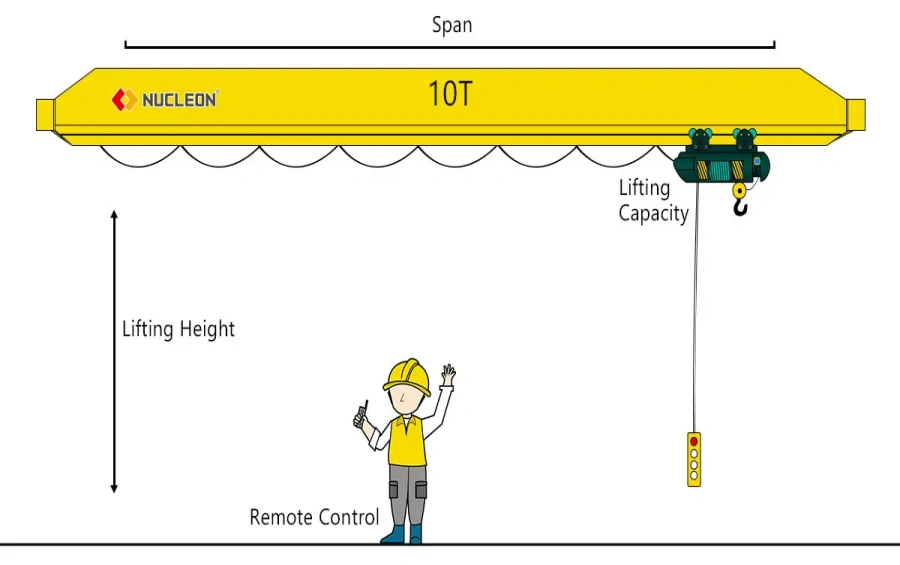

- Rated lifting capacity, workshop main girder span and required effective lifting height
- Actual clear height under girders, and whether there are pipelines or obstacles on the ceiling
- Local industrial voltage and frequency (380V/415V/440V, 50/60Hz)
- Daily operation hours and working class (Class A3/A5 for general use)
- Special requirements such as explosion-proof, anti-corrosion or cleanroom treatment
- Certification documents required for local customs clearance (CE, EAC, SASO, etc.)
Summary
Low headroom overhead cranes are not low-cost simplified lifting equipment, but professional customized solutions designed for space-restricted working conditions. For overseas factories with low ceilings, limited renovation budgets and dense overhead pipelines, they slash civil reconstruction costs, maximize vertical workshop utilization, and balance handling efficiency, operational safety and long-term running expenses.
We own a complete production line for researching and manufacturing low headroom overhead cranes. Our products are exported to more than 50 countries including Nigeria, Southeast Asian nations, the Middle East and Europe. We supply full sets of export documents, international certifications, remote overseas technical guidance and genuine spare parts. Feel free to send us your workshop parameters for a tailored solution.This is our website, you can view related products. https://nucleoncrane-group.com
