The 100 Ton Gantry Crane is a heavy-duty lifting solution designed for large-scale cargo handling and industrial material transportation. It is capable of lifting containers, heavy mechanical equipment and large industrial components, making it widely used in ports, shipyards, construction projects and heavy manufacturing facilities.
With excellent load-bearing capacity, structural stability and reliable operation performance, the 100-ton gantry crane provides an efficient solution for heavy material transfer, equipment installation and large component positioning under demanding working conditions.
100 Ton Gantry Crane Main Components
The structural design of the 100-ton gantry crane focuses on high strength, operational stability and convenient control. Each major component works together to ensure safe lifting performance and efficient heavy-load operation.
Gantry Structure

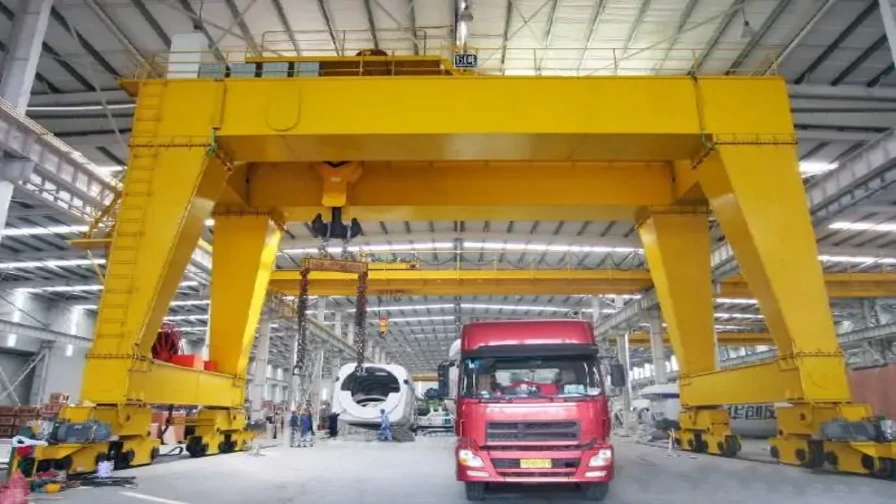

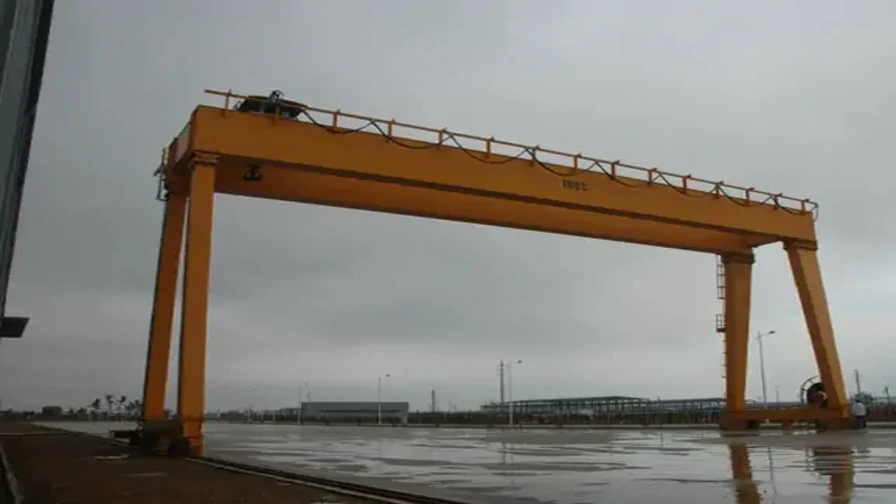

The gantry frame is the main supporting structure of the crane and is manufactured from high-strength steel materials. According to different working conditions, the 100-ton gantry crane can be designed with truss-type or box-type structures.
The truss structure features lightweight design and excellent wind resistance, making it suitable for outdoor applications. The box-type structure provides higher rigidity and stronger load-bearing capability, making it ideal for heavy-duty lifting operations requiring maximum stability.
The supporting legs on both sides provide stable structural support. According to project requirements, cantilever designs can also be added to extend the working range and improve operational flexibility.
Trolley Mechanism
Installed on the upper crossbeam of the gantry structure, the trolley mechanism drives the lifting hook to move horizontally along the main beam.
The system adopts precision guide rails and reliable drive mechanisms to achieve smooth travelling, accurate positioning and low-noise operation, ensuring safe and efficient transportation of heavy loads.
Track System
The track system controls the travelling range of the entire crane and ensures stable movement during operation.

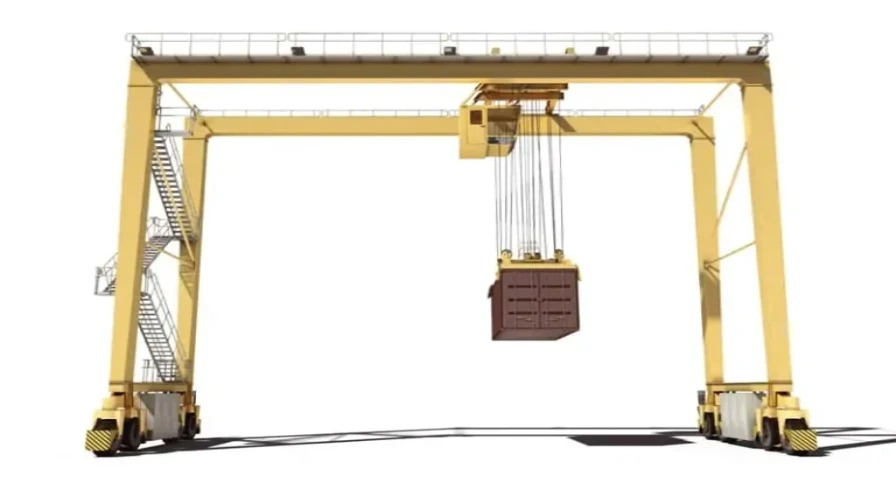

For rail-mounted gantry cranes, dedicated ground rails provide accurate positioning and stable operation. For rubber-tyred gantry crane models, high-strength tires replace fixed rails, allowing flexible movement and position adjustment in temporary operation areas or locations requiring frequent relocation.
Braking System
The braking system is an essential safety component controlling the start, stop and speed reduction of lifting and travelling mechanisms.
By preventing load slipping and uncontrolled movement caused by inertia, the braking system improves operational safety and reduces risks during heavy lifting operations.
Control System
The 100-ton gantry crane generally supports cabin control and wireless remote control operation modes.
The operator cabin provides a wide field of vision and is equipped with operating handles, monitoring instruments and safety control devices, allowing precise control of crane movements. Wireless remote control enables operators to operate the crane safely from a distance and provides greater flexibility in complex working environments.
Both control methods can be selected independently or combined according to actual project requirements.
Ports and Container Terminals:
Used for loading, unloading, and transferring containers between ships and transport vehicles, improving cargo handling efficiency and turnover speed.
Shipyards:
Applied for lifting and positioning large ship components, including hull sections and heavy engines, making shipbuilding and maintenance operations safer and more efficient.
Heavy Machinery Manufacturing:
Used for transporting large machine tools, heavy castings, and oversized industrial equipment, reducing manual handling requirements and improving production efficiency.
Large Construction Projects:
Suitable for lifting heavy construction materials such as prefabricated beams and steel structures in bridge construction, factory construction, and other large-scale projects.
Special Working Environments:
For outdoor areas with strong winds or temporary operation sites, the crane structure and configuration can be adjusted to meet specific application requirements.
| Parameter Category | Parameter range |
|---|---|
| Rated lifting capacity | 100 tons |
| span | 10-50 meters |
| Lifting height | 5-35 meters |
| Running speed | Lifting speed: 0.8-1 m/min |
| Trolley running speed: 10-12 m/min | |
| Trolley running speed: 13-15 m/min | |
| Applicable temperature | -25℃-40℃ |
| Control method | Cab control, ground remote control |
| Power specifications | 380V, 50Hz, 3-phase AC |
