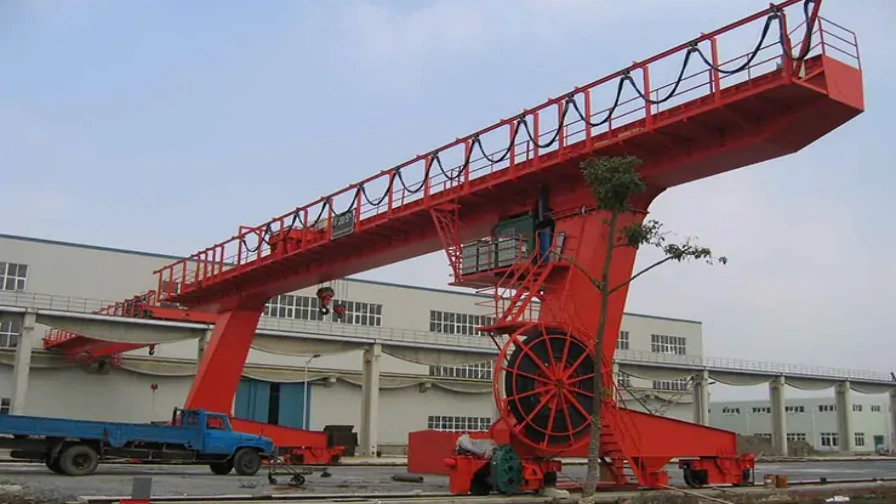

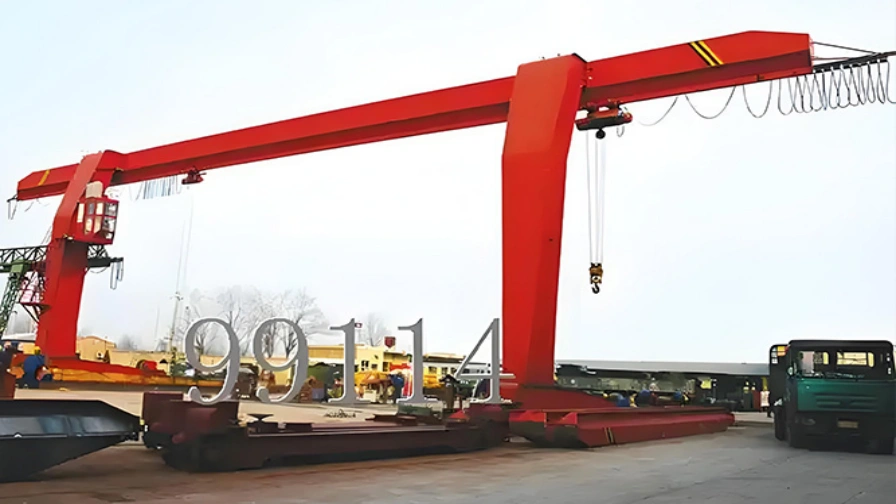

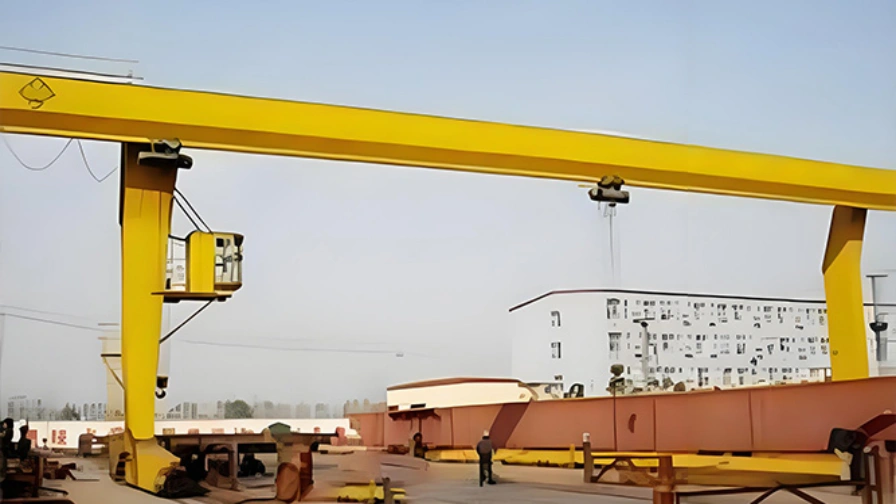

The L type gantry crane is a flexible and efficient single-girder gantry crane designed for outdoor material handling operations. Its main structure consists of the main beam, L-shaped outriggers, traveling mechanism, lifting mechanism, and electrical control system. The electric hoist is installed on the main beam as the lifting device, and the lifting and lowering of materials are achieved through motor-driven operation. With a compact structure, simple operation, and reliable performance, the electric hoist provides an economical lifting solution for various working environments.

As a light-duty rail-mounted gantry crane, the L type gantry crane is typically suitable for lifting capacities of 5-10 tons. Its unique L-shaped leg structure provides a larger working area and better accessibility, making it widely used for loading, unloading, and transferring materials in open yards, warehouses, workshops, and logistics areas.

L type gantry cranes are widely used in various material handling scenarios, including:

Port Loading and Unloading: Suitable for handling containers, bulk materials, scrap steel, and other cargo, improving loading and unloading efficiency.

Workshop and Warehousing: Used for lifting and transporting machinery parts, steel products, raw materials, and finished products in production and storage areas.

Construction and Logistics: Applied for lifting large structural components, prefabricated parts, and equipment during construction and logistics transfer operations.

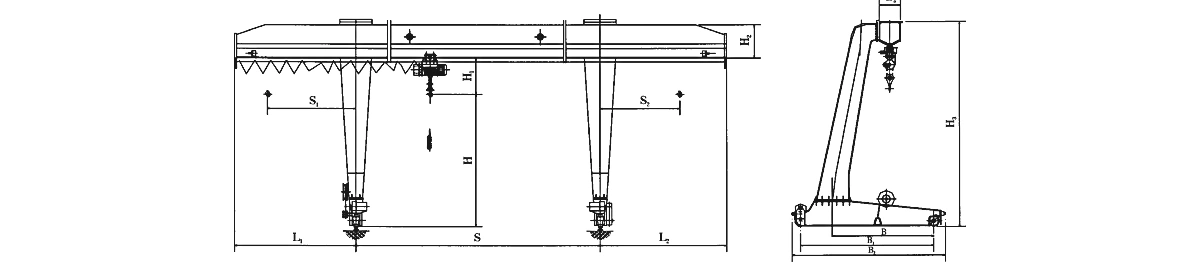

L-Shaped Single-Girder Design: Compared with traditional gantry cranes, the L-shaped structure adopts an offset single-girder design, providing a larger lifting space and improved utilization of the working area. It is especially suitable for handling materials from the center of the span to areas beneath the cantilever section.

Strong Box-Type Gantry Structure: The welded box-type frame provides high strength and rigidity, ensuring stable operation under different working conditions. The lifting capacity can be customized according to project requirements.

Flexible Configuration Options: The crane can be equipped with an operator cabin, wireless remote control, or pendant control. Optional accessories such as air conditioning, electric fans, fire extinguishers, and communication devices can improve operating comfort and safety.

Wide Load Handling Capability: Suitable for handling various types of materials, with customizable lifting height and span to meet different application requirements.

Flexible Mobility: Available with rail-mounted traveling systems or customized mobile configurations, allowing the crane to adapt to factories, warehouses, construction sites, and outdoor yards.

Comprehensive Safety Protection: Equipped with limit switches, emergency stop devices, overload protection, and other safety systems to ensure reliable and safe operation.

L type gantry cranes can be customized according to specific project requirements. Customers can provide the following information:

Basic Parameters: Lifting capacity, span, lifting height

Working Environment: Indoor/outdoor conditions, temperature, corrosive environment, etc.

Power Requirements: Voltage, frequency, and power supply method

Special Requirements: Explosion-proof design, remote control, automation system, or other customized functions.
