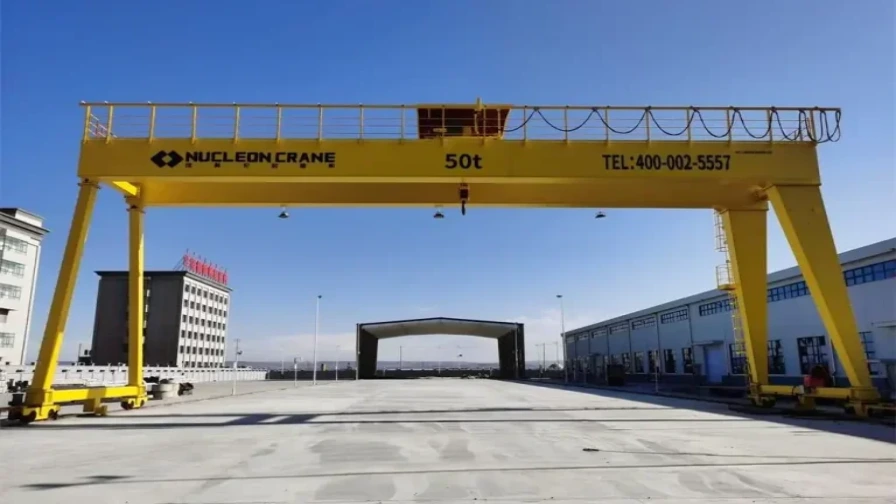

The 50 Ton Gantry Crane is a heavy-duty lifting solution designed for high-efficiency material handling operations in demanding industrial environments. It is mainly used for lifting, transporting and positioning large components and heavy materials that require high load capacity and stable operation.

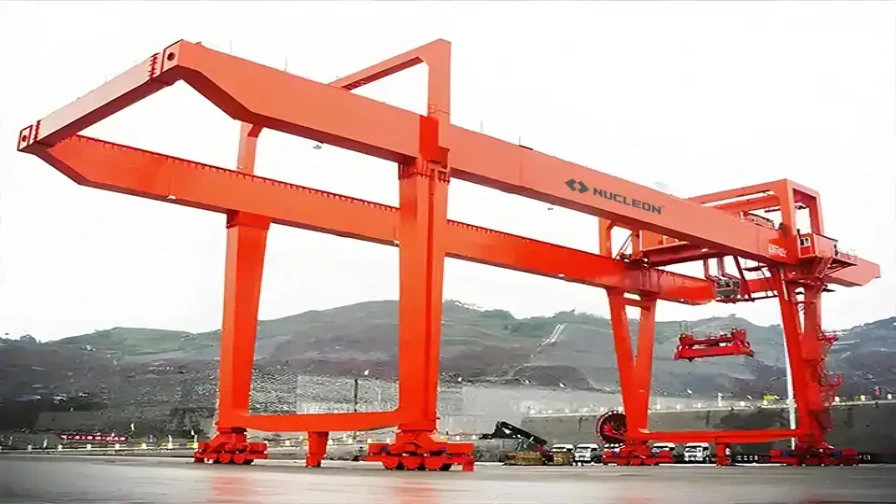

The crane adopts a robust gantry structure consisting of a main frame supported by two rigid legs and a lifting trolley. The entire crane travels longitudinally along ground rails, forming a large rectangular working area for flexible lifting and transportation operations.
With excellent load-bearing capacity, structural stability and reliable performance, the 50 Ton Gantry Crane provides an efficient lifting solution for heavy-duty applications including open yards, ports, power plants, equipment manufacturing facilities and logistics transfer areas.
50 Ton Gantry Crane Structure Design

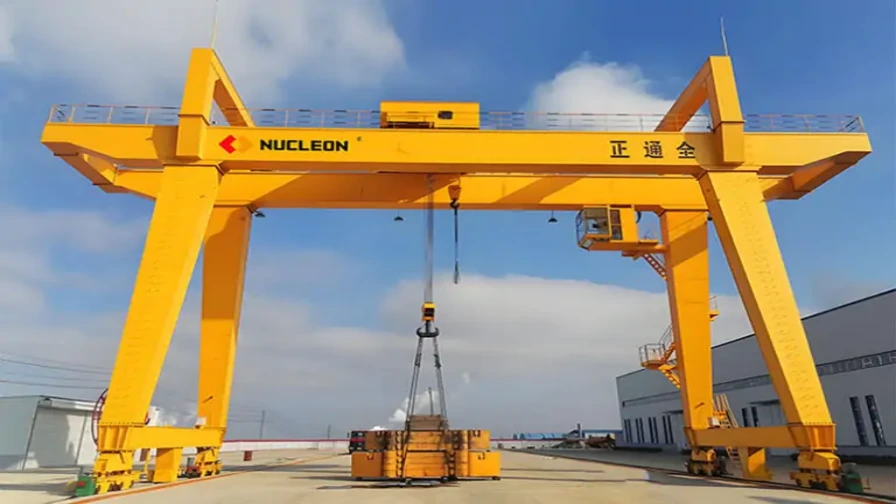

The 50-ton gantry crane features a strong steel gantry frame, rigid supporting legs and a heavy-duty lifting trolley system. The optimized structural design provides excellent rigidity and stability during heavy load lifting operations.
The trolley travels along the main girder to achieve accurate load positioning, while the crane travelling mechanism enables flexible movement across large working areas, making it suitable for complex industrial material handling tasks.
Applications of 50 Ton Gantry Crane
The 50 Ton Gantry Crane is widely applied in industries requiring heavy lifting capacity and reliable outdoor operation, including:
Open yards and material storage areas for heavy cargo handling

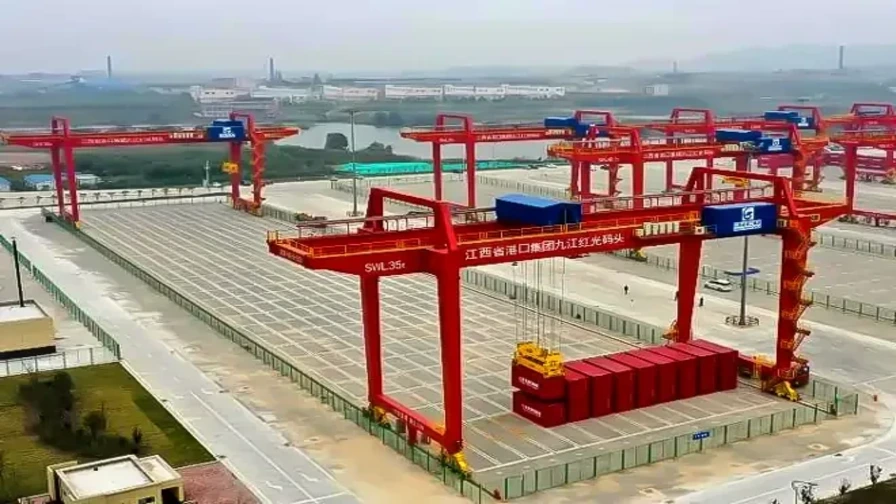

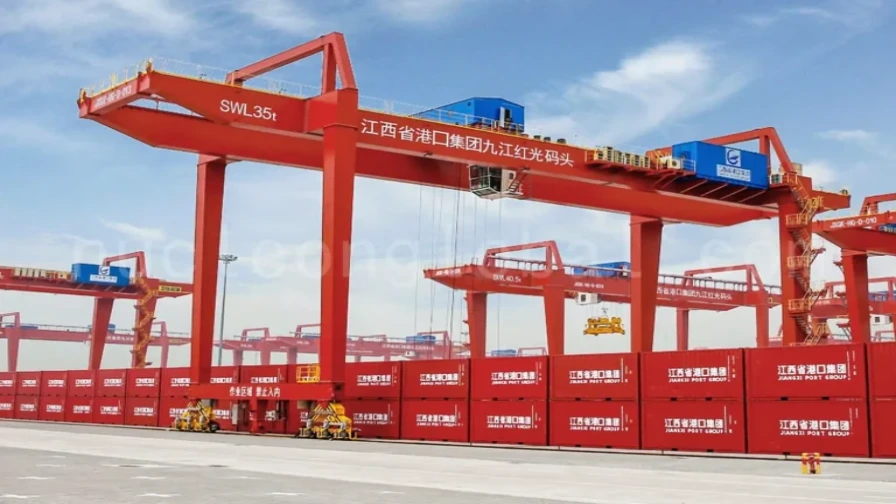

Port terminals for loading, unloading and transportation operations
Power plants for equipment installation and maintenance work
Heavy equipment manufacturing facilities for large component handling

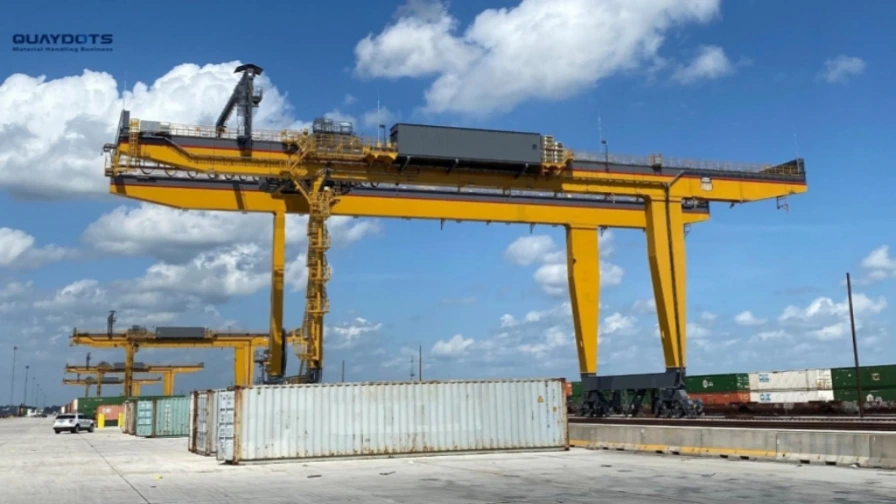

Logistics transfer stations for heavy material movement
Heavy-Duty Material Handling Performance
The 50-ton gantry crane is designed for loading, unloading, transportation and precise positioning of heavy materials. Its stable travelling system and powerful lifting mechanism ensure safe and efficient operation under continuous industrial working conditions.
Advantages of 50 Ton Gantry Crane
Solid Structure and Long Service Life
The 50-ton gantry crane adopts high-strength steel as the main structural material, providing excellent rigidity, stability and load-bearing capacity for heavy-duty lifting operations.
During manufacturing, the steel structure undergoes professional surface treatment processes such as sandblasting to remove rust and eliminate surface stress. The application of zinc-rich epoxy coating improves corrosion resistance and allows the crane to maintain reliable performance under long-term outdoor and heavy-duty working conditions.
Multiple Safety Protection Systems
To ensure safe and stable operation, the 50 Ton Gantry Crane is equipped with comprehensive safety protection devices, including:
Overload protection system
Emergency stop button
Travel limit switches
Anti-sway control system
These safety configurations effectively reduce operational risks and protect both equipment and operators during heavy lifting activities.
Flexible Operation Methods
The 50-ton gantry crane supports multiple control methods according to different working requirements. Operators can use wireless remote control for convenient operation from a safe distance, or select cabin control for more precise handling in complex industrial environments.
The suitable control mode can be selected based on application conditions, working intensity and operator requirements.
Customized Solutions for Different Applications
The 50 Ton Gantry Crane can be customized with different accessories and protective configurations according to specific industry requirements and operating environments.
For outdoor applications, optional configurations include:
Waterproof electrical enclosures
Heating control systems
Wind speed monitoring devices
Additional lifting accessories can also be installed to expand application capabilities, including:
Magnetic chucks
Lifting beams
Stone clamps
The power supply system can be adjusted according to different regional voltage standards, ensuring compatibility with various installation locations and working environments.
Customized 50 ton gantry cranes should be designed according to actual lifting requirements, working environment conditions and future application demands. Nucleon provides professional 50-ton gantry crane solutions with flexible configurations, ensuring reliable performance, safe operation and efficient material handling for heavy-duty industrial applications.
Through professional engineering analysis and customized design, key crane parameters such as lifting capacity, span, lifting height, working class and structural configuration can be optimized to match different project requirements.

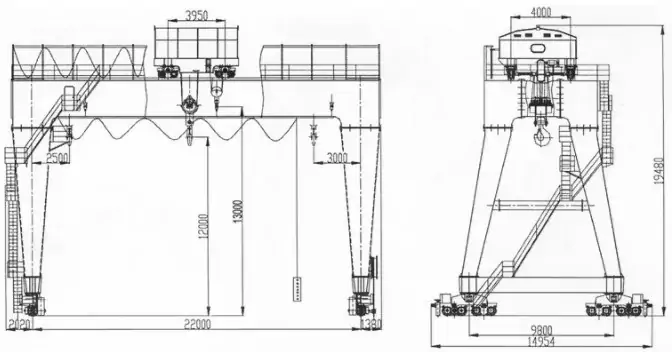

Main Customization Parameters
Lifting Capacity: Define the required lifting capacity according to load requirements. Main and auxiliary hook configurations, such as 50/10 tons, can be customized for complex lifting operations.
Span (S): The distance between the centerlines of crane rails determines the working coverage area and should be customized according to site layout and operation requirements.
Lifting Height (H): The maximum distance from the hook center to the ground. The lifting height should consider obstacles, material stacking height and transportation requirements at the working site.
Working Class (A): Select the appropriate crane duty classification according to operation frequency and load conditions, such as A5 or A6, to ensure long-term reliable performance.
Additional Design Considerations
Site Layout: Consider available installation space, crane runway arrangement and operational coverage requirements.
Working Environment: Evaluate indoor or outdoor conditions, temperature, humidity, dust and corrosion factors.
Power Supply: Select suitable electrical systems according to local power standards and project requirements.
Control System: Options include pendant control, wireless remote control, cabin operation and intelligent automation systems.
Structural Configuration: Optimize crane structure design according to span, load conditions and installation environment.
Hook and Lifting Devices: Customized lifting attachments and hook configurations are available for different material handling applications.
With professional engineering expertise and manufacturing experience, Nucleon provides customized 50 ton gantry crane solutions tailored to specific project requirements. Our team supports customers from crane selection and configuration design to final application, ensuring safe operation, high efficiency and long-term equipment reliability.
