The 20 Ton Gantry Crane is a medium heavy-duty material handling solution widely used in industrial applications including factory workshops, warehouses, construction sites, ports and railway freight yards.
Designed for lifting and transporting medium to heavy loads, the 20-ton gantry crane provides excellent structural stability, flexible operation and reliable performance under different working conditions. With various structural configurations available, it can meet diverse material handling requirements in industrial environments.
According to different application scenarios, the crane can be customized with suitable structural designs, lifting mechanisms and control solutions. Nucleon provides customized 20 Ton Gantry Crane solutions based on customer site conditions, lifting capacity requirements and working environments.
20 Ton Gantry Crane Main Components
The 20-ton gantry crane consists of multiple key components, each working together to ensure safe, stable and efficient lifting operations.
Electric Hoist
The electric hoist is the primary lifting component of the 20 Ton Gantry Crane. It uses a hook, wire rope and lifting mechanism to lift, lower and accurately position loads during material handling operations.
Running Trolley
The running trolley is responsible for horizontal load movement. It travels along the main beam track and carries the electric hoist sideways, expanding the working range and improving handling flexibility.
Control System
The control system supports wireless remote control and cabin operation modes. Wireless control allows operators to operate the crane from a safe distance, while the cabin control option provides improved visibility and precise operation for complex working conditions.
Safety Protection Devices
The 20-ton gantry crane is equipped with comprehensive safety protection systems, including travel limit devices, braking systems and overload protection sensors. These safety configurations help reduce operational risks and improve workplace safety.
Safety Features of 20 Ton Gantry Crane
Travel limit devices prevent crane and trolley overtravel
Reliable braking systems support emergency stopping requirements
Overload protection sensors prevent excessive loading conditions
Safety devices are designed according to relevant industrial standards to improve operational reliability
Nucleon is a professional 20 ton gantry crane manufacturer and supplier with over 20 years of experience in crane design, manufacturing and engineering services. We provide reliable customized gantry crane solutions for industrial workshops, warehouses, construction sites, ports and various heavy material handling applications.
The 20 ton gantry crane is designed for medium and heavy-duty lifting operations, offering excellent structural stability, precise load handling and dependable performance. Based on different working conditions and customer requirements, Nucleon provides customized solutions covering crane structure, lifting mechanism, control system and operating methods.
Available Gantry Crane Types
RTG Gantry Crane: Suitable for container yards, logistics centers and large-scale material storage applications requiring flexible outdoor operation.
Lattice Gantry Crane: Features a lightweight structural design with excellent wind resistance and is suitable for large-span lifting projects.
Semi Gantry Crane: Combines the advantages of overhead cranes and gantry cranes, providing an efficient solution for workshops and outdoor lifting areas.
With professional engineering capabilities and advanced manufacturing experience, Nucleon delivers high-quality 20 ton gantry crane systems that meet different industrial requirements. Our technical team provides complete support from crane selection and customized design to installation guidance and after-sales service.
If you are looking for a reliable 20 ton gantry crane manufacturer or customized gantry crane supplier, contact Nucleon for professional technical consultation and project quotation services.

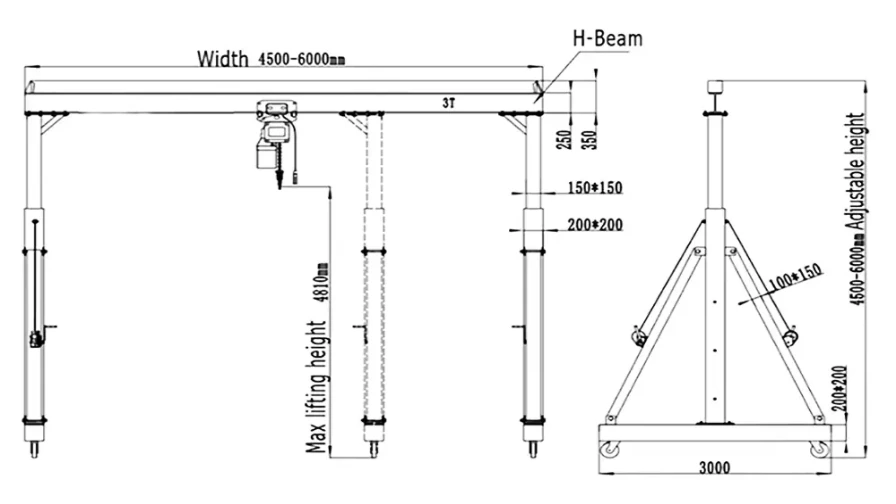

| Specifications | General Parameters |
|---|---|
| Lifting capacity | 0.5-10 tons |
| Lifting height | 1 meter - 10 meters |
| span | 2 meters - 12 meters |
| Lifting mechanism | chain hoist |
| Protection level | IP55 |
| Operating temperature | normal temperature |
