For shipbuilding projects requiring wide operating ranges and medium lifting loads, the single girder shipbuilding gantry crane provides an economical and efficient lifting solution with excellent structural strength, stable operation, and reliable performance. For heavier ship components and more demanding marine construction tasks, the double girder configuration offers greater lifting capacity, enhanced rigidity, and improved load-bearing capability.

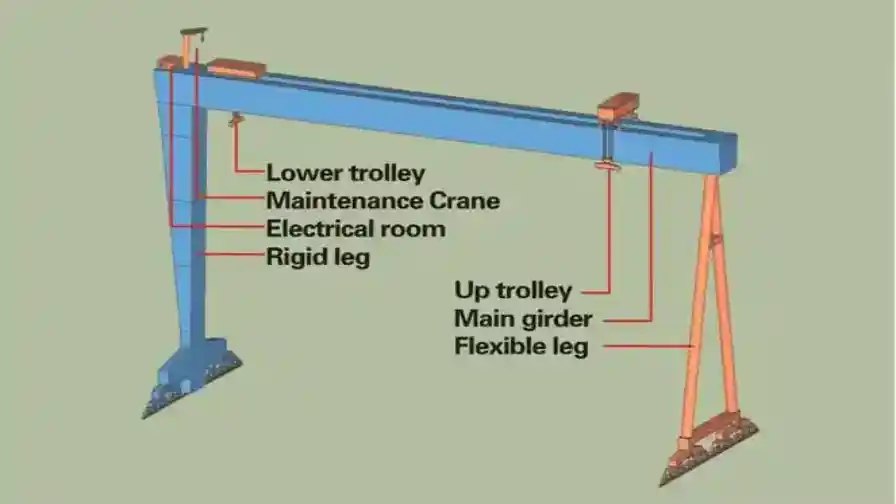

The shipbuilding gantry crane consists of a robust gantry structure, upper and lower lifting trolleys, trolley traveling mechanisms, electrical control system, maintenance platforms, lubrication system, and operator access equipment. Designed for continuous outdoor service, it ensures efficient and stable lifting operations throughout the ship manufacturing process, including steel fabrication, large component transfer, and hull block installation.
Safety Protection System
Shipbuilding gantry cranes are equipped with comprehensive safety protection devices to ensure accurate operation, prevent potential risks, and maintain reliable performance under demanding shipyard working conditions.
Main safety features include:
      • Rail clamps or wheel braking systems
      • Wind speed and wind direction monitoring devices
      • Overload protection and load limiting systems
      • Travel limit switches for controlled crane movement
      • Ground anchoring devices for outdoor operation
      • Optional anti-deviation correction system for extra-wide spans
These safety systems improve crane stability, ensure precise traveling control, reduce operational hazards, and enhance the overall reliability of heavy-duty shipyard lifting operations.
Main Technical Specifications
| Parameter | Specification |
|---|---|
| Lifting Capacity | 100–1200 Tons |
| Lifting Height | 30–120 m |
| Span | 5–35 m (Customizable) |
Weihua Crane provides professional design and manufacturing services for high-performance shipbuilding gantry cranes used in marine engineering projects and ship construction facilities worldwide. Each crane is developed with strong lifting capability, precise positioning performance, and long-term operational reliability, making it suitable for handling hull blocks, steel structures, and oversized marine components.
To meet the specific requirements of different shipyards and production processes, key specifications including lifting capacity, crane span, lifting height, and rail gauge can be customized according to project conditions. This flexible design ensures improved production efficiency, optimized material handling processes, and reduced operating costs.
Optional Configurations
• Electric or hybrid trolley traveling systems
• Wireless remote control and intelligent automation functions
• Anti-sway technology with high-precision positioning system
• Energy-saving drive system with regenerative braking technology
• Customized crane structures for special rail layouts and shipyard applications
With advanced engineering capabilities and extensive manufacturing experience, Weihua Shipbuilding Gantry Crane delivers a dependable lifting solution for modern shipyards, supporting efficient marine fabrication, large vessel construction, and heavy component handling operations.
| Parameter | Unit | 2×50+100 | 2×75+100 | 2×100+160 | 2×150+200 | 2×400+400 |
|---|---|---|---|---|---|---|
| Lifting Capacity | t | Two trolleys lifting: 150 Section reverse lifting: 100 |
Two trolleys lifting: 200 Section reverse lifting: 150 |
Two trolleys lifting: 300 Section reverse lifting: 200 |
Two trolleys lifting: 500 Section reverse lifting: 300 |
Two trolleys lifting: 1000 Section reverse lifting: 800 |
| Two trolley lifting / Section reverse lifting | ||||||
| Work Classifications | - | A5 | ||||
| Span | m | 50 | 70 | 38.5 | 175 | 185 |
| Lifting Height | H1 | 35 | 50 | 28 | 65/10 | 76/13 |
| H2 | 35 | 50 | 28 | 65/10 | 76/13 | |
| Lifting Speed | Full Load | 0.5-5 | 0.5-5 | 0.4-4 | 0.5-5 | 0.32-3.2 |
| No Load | 1-10 | 1-10 | 0.8-8 | 1-10 | 0.64-6.4 | |
| Crane Travelling Speed | m/min | 2.5-25 | 2-20 | 3-30 | 1-25 | 3-30 |
| Trolley Travelling Speed | m/min | 2.5-25 | 2.5-25 | 3-30 | 1-25 | 3-30 |
| Wheel Load | KN | 260 | 320 | 330 | 700 | 750 |
| Total Power | KW | 400 | 530 | 650 | 1550 | 1500 |
| Power Supply | - | 3-phase AC 50Hz 10KV | ||||
