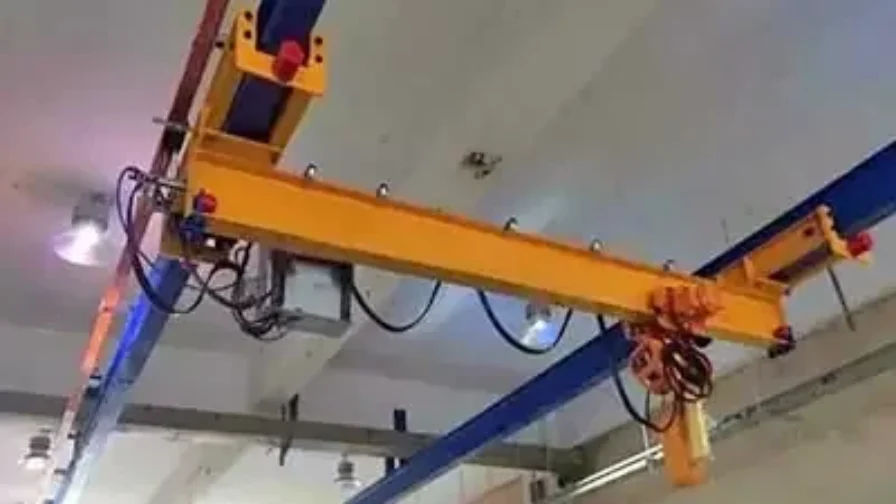

The Underslung EOT Crane, also known as an underhung bridge crane, is a specialized lifting device meticulously engineered for spaces with height constraints. Unlike traditional cranes that rely on ground-supported columns, it suspends from roof trusses or ceiling structures. This unique design makes it a perfect fit for low-headroom buildings, enabling efficient material handling, assembly, and maintenance tasks across various industrial settings.

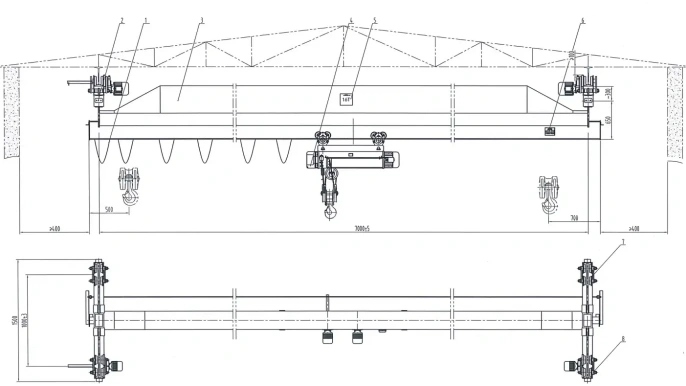

Underslung EOT Crane Design

Column-less Design: The main beam is suspended directly from the roof structure, eliminating the need for ground support columns. This makes it particularly suitable for workshops and warehouses with complex layouts or limited space.

Low Headroom Compatibility: The compact design maximizes hook height utilization, allowing installation in low ceilings where traditional cranes are impassable.

Compatible with Various Building Structures: It can be directly fixed to reinforced concrete roofs, steel trusses, or mounted via a suspension rod, adapting to complex building forms such as flat and pitched roofs.

Modular Design: Standardized components facilitate installation and allow for rapid expansion and disassembly, making it suitable for both existing factory renovations and new construction projects.

Efficient Operation and Safety

The crane supports multiple control methods: wireless remote control and push-button operation. It has adjustable lifting and operating speeds. This enables precise control and better handling efficiency. Standard features include overload protection, limit switches, and an emergency stop. An optional anti-collision system is available. These ensure comprehensive operational safety.

Durability and Low Maintenance Costs

High strength and rigidity come from welded box beams or rolled I-beams. The closed track design reduces dust buildup and component wear. Key components use high-quality materials, with working grades A3-A4. This ensures durability and keeps maintenance costs low.

Suspended installation
It runs on the bottom flange of roof runway beams, no ground support columns required, saving floor space greatly.

Low-headroom optimized design
Maximize hook lifting height, perfectly fit low-ceiling workshops with limited vertical space.

Flexible & full coverage operation
The trolley can travel to both beam ends without dead zones, realizing full-area material handling.

Easy installation & cost-saving
Mounted on existing plant roof steel structures, short construction period and low installation cost.

Stable & safe performance
Equipped with frequency conversion control and complete safety protection devices, featuring smooth running and precise positioning.

Wide applicability
Light-duty load range 1-20ton, ideal for warehouses, assembly workshops and processing factories.

Customized Underslung EOT Crane Solutions

As a professional underslung EOT crane manufacturer, we provide full-range customized underslung overhead crane solutions tailored for low-headroom workshops, renovated factories and limited-space warehouses, delivering stable lifting performance and site-adaptive installation design.

We support flexible customization covering core performance parameters, control modes, anti-corrosion & explosion-proof treatment, track and suspension mounting forms, fully adapting to various building structures and special industrial working environments.

Customization considerations

Custom core performance parameters: load capacity, span, and lifting height

Optional control modes: wireless remote control and manual push-button operation

Special environment upgrades: explosion-proof and corrosion-resistant solutions for chemical plants and coastal areas

Flexible adjustment of track types and suspension mounting methods to fit actual site conditions

Our professional engineering team develops site-matched custom schemes to guarantee stable operation, installation compatibility and long service life, ideal for low-ceiling factories, reconstruction workshops and special industrial premises.

Underslung EOT Crane Main Technical Parameters
