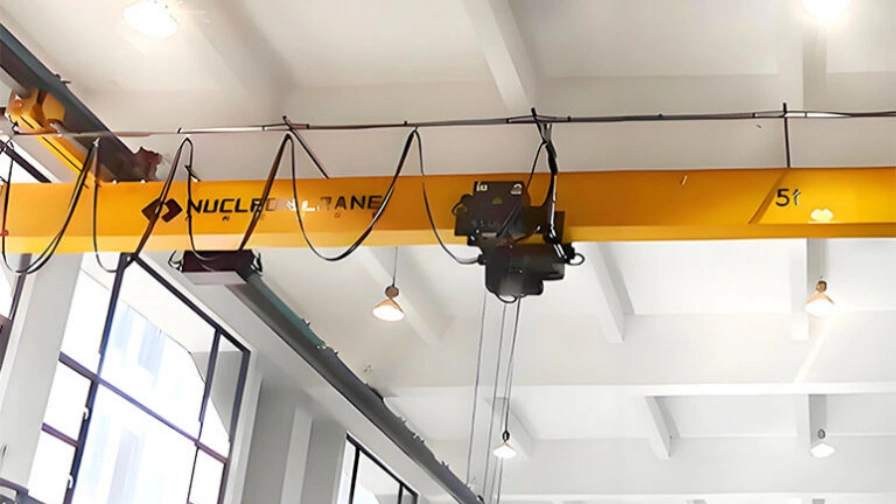

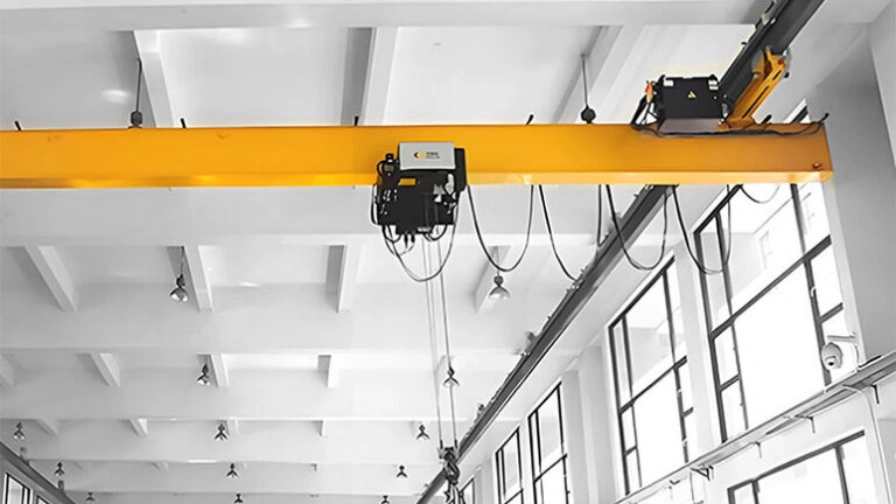

LX Type Single Beam Suspension Crane is a lightweight overhead lifting equipment designed for factories and workshops where traditional column-supported overhead cranes cannot be installed. Unlike conventional bridge cranes, the end beams of this suspension crane run on the bottom flange of the runway beam, which is directly suspended from the building roof structure.
This design eliminates the need for ground support columns, making full use of the upper space of the workshop and improving the utilization efficiency of the working area. Due to its lightweight structure, the crane is mainly suitable for light-duty lifting applications, with a maximum lifting capacity generally not exceeding 10 tons.
The LX suspension crane is suitable for working environments with temperatures ranging from -25℃ to 40℃. It is not recommended for locations containing flammable, explosive, or corrosive materials. The crane complies with JB/T2603-94 technical standards, ensuring reliable performance, stable operation, and long service life.
The crane consists of a lifting hoist, single main girder, end beams, and electrical control system. Its compact structure features low overall height, small size, lightweight design, and reduced wheel pressure, making it especially suitable for workshops with limited installation space.
The operation modes include cable control and wireless remote control, allowing flexible operation according to different working conditions. The high-performance braking system with an anti-dust protection device provides stable braking performance and automatic adjustment, improving safety and reliability during operation.
With an optimized structural design and reasonable load distribution, LX suspension crane effectively improves space utilization and helps reduce factory construction and equipment investment costs. Since the crane is installed closer to the ceiling and away from the main working area, it can also reduce noise interference and create a more comfortable working environment.

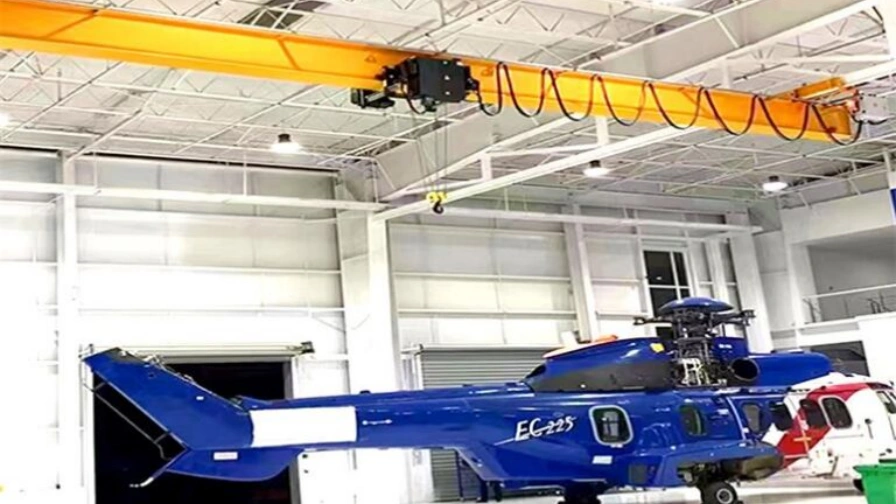

LX single girder suspension crane is an ideal light-duty lifting solution for workshops, warehouses, production areas, and maintenance facilities. Customized solutions can also be provided according to different site conditions and lifting requirements.
Lightweight and Simple Structure
The crane adopts a single main girder design with a compact structure, light dead weight, and easy operation, making it suitable for light-duty material handling tasks.
Flexible Installation for Limited Spaces
The suspension design allows installation in workshops where ground columns are unavailable or space is restricted, maximizing available working areas.
Cost-Effective Solution
With a simple structure, low installation requirements, and reduced maintenance costs, the LX suspension crane provides an economical lifting solution while improving production efficiency.
Smooth and Reliable Operation
Equipped with reliable electrical control and braking systems, the crane provides stable movement, precise positioning, and safe operation during daily lifting activities.

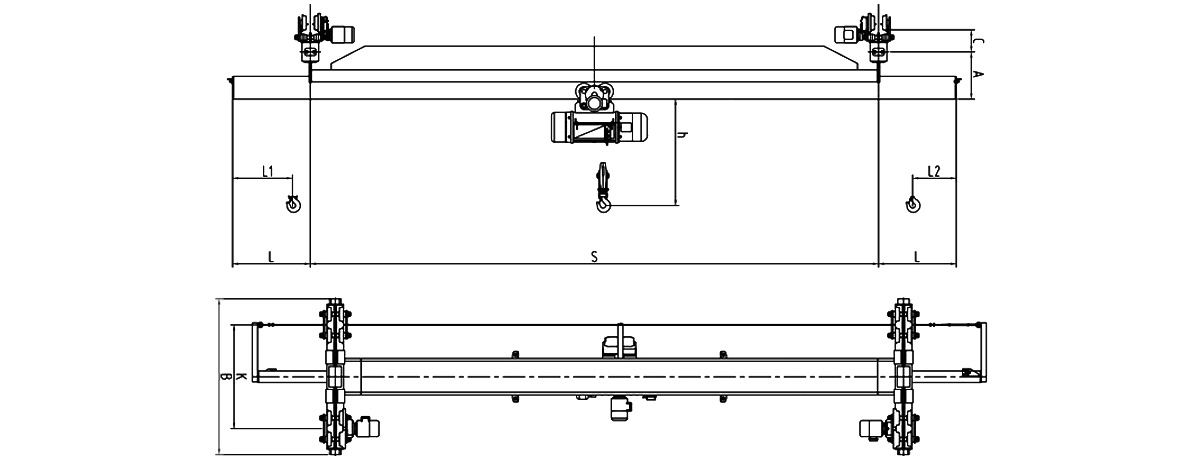

LX Type Electric Suspension Crane Technical Parameter
| Lifting Capacity(t) | 1 | 3 | 5 | 10 |
| Span(m) | 3~22.5 | |||
| Work class | A4 | |||
| Power Supply | AC 380V 50Hz | |||
| Crane travelling mechanism | Travelling speed(m/min) | 20 | ||
| Power(KW) | 0.4*2,0.8*2,0.37*2,0.75*2 | |||
| Lifting&travelling mechanism | Travelling speed(m/min) | 20/30 | ||
| Hoist type | CD/MD | Lifting speed(m/min) | 6-30 | |
| Capacity(t) | 1-10 | Lifting height(m) | 5-13 | |
| Span(m) | 3~22.5 | |||
| Power Supply | AC 380V 50Hz | |||
| Wheel diameter | Φ134,Φ154 | |||
| Work class | A4 | |||
