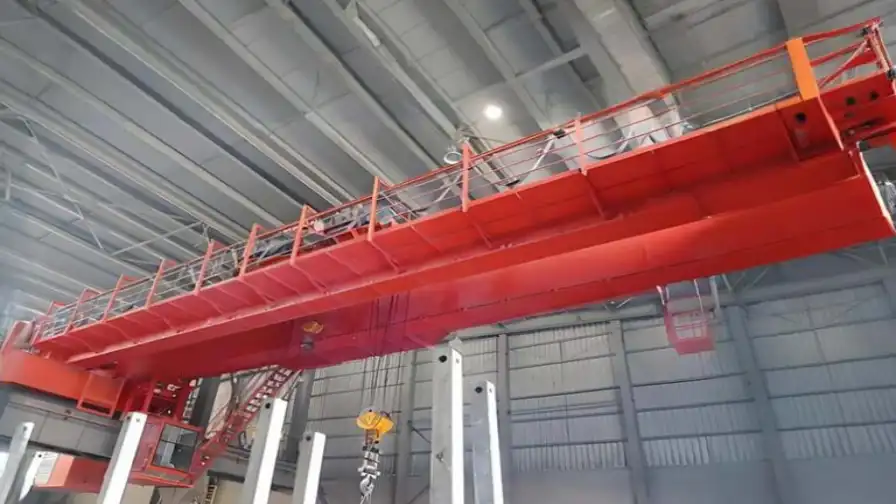

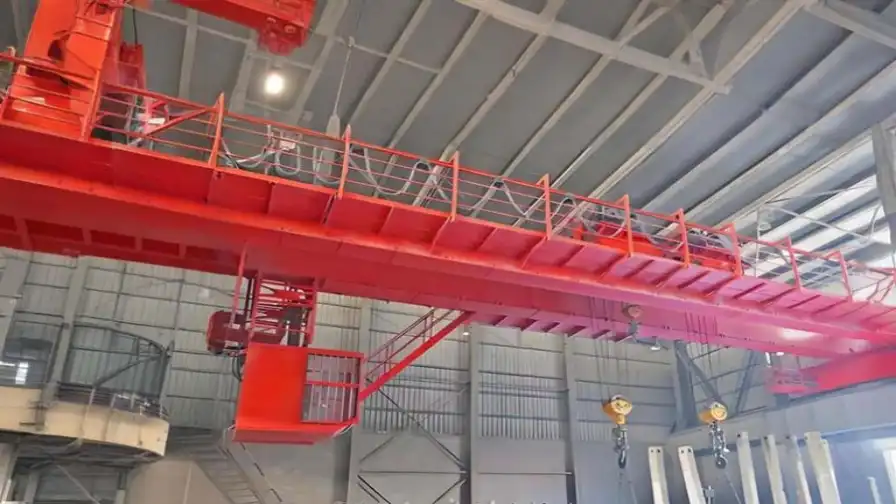

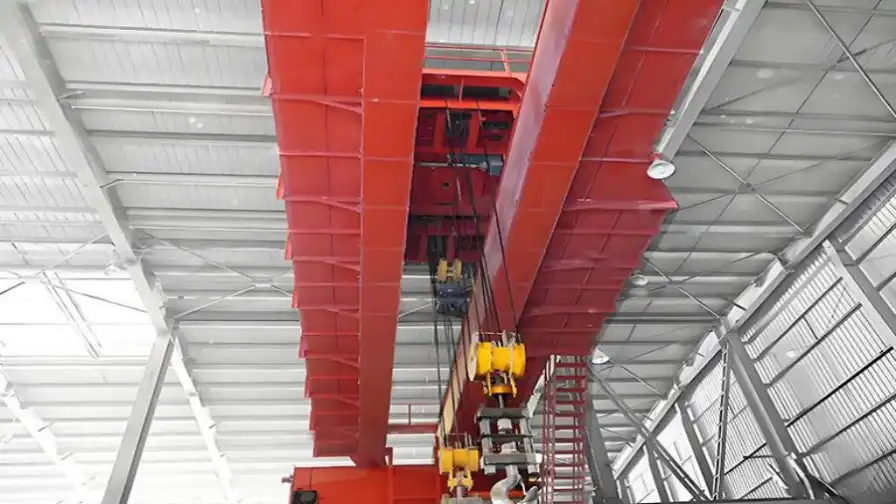

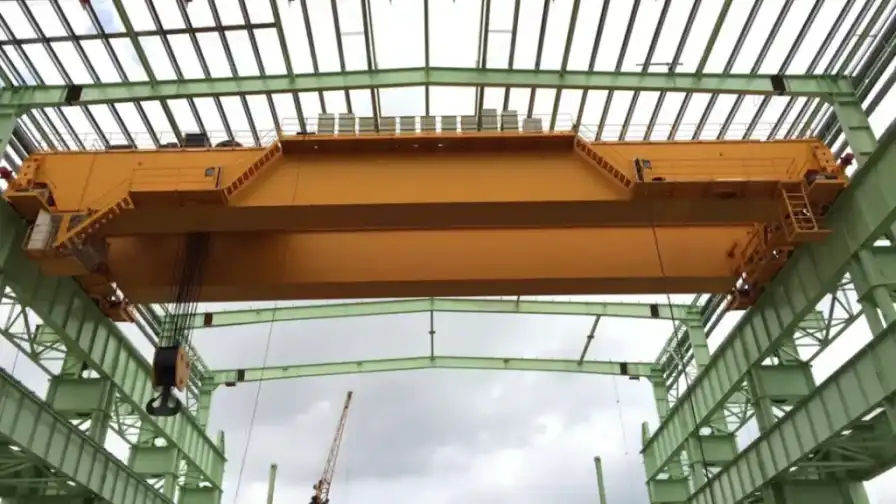

QY Insulation Overhead Crane is a specialized lifting solution developed for non-ferrous metal electrolytic smelting plants and other industrial environments with electrical hazards. It is mainly designed for electrolysis workshops in industries such as aluminum, magnesium, zinc, lead, and other metal processing fields.

With lifting capacities ranging from 5 tons, 10 tons, 16 tons, 16/3.2 tons, 20/5 tons, and other customized specifications, this insulated bridge crane provides safe and reliable material handling under electrically conductive working conditions.

Since electrolytic workshops typically operate with high-current DC equipment, the crane is equipped with multiple insulation protection systems installed at critical structural and electrical connection points. These insulation measures effectively prevent current transmission from lifted materials to the crane structure, reducing the risk of electric shock and ensuring safe operation for operators and equipment.

Designed for high-temperature, high-humidity, and corrosive industrial environments, QY insulated overhead cranes provide reliable lifting performance and enhanced safety protection for modern electrolysis production lines.

QY Insulation Overhead Crane is specially designed for workplaces where electrical isolation is required, especially in industries involving conductive materials and energized equipment.

Non-Ferrous Metal Electrolysis Industry

Widely used in aluminum, magnesium, zinc, and lead electrolysis plants for lifting and transporting:

• Cathode plates

• Anode plates

• Electrolytic cells

• Molten metal materials

The insulation system prevents electrical conduction during lifting operations.

Chemical Industry

Suitable for electrochemical production environments such as:

• Salt electrolysis workshops

• Electroplating plants

• Chemical processing facilities

The crane provides safe handling of energized tanks, corrosive materials, and production equipment.

Battery Manufacturing Industry

Used for handling electrically charged components in:

• Lithium battery production

• Lead-acid battery manufacturing

• Energy storage equipment facilities

The insulation protection helps prevent short circuits and electrical accidents.

Power Equipment Industry

Applied for lifting and installation of energized electrical equipment, including:

• Transformers

• High-voltage switches

• Power distribution equipment

The crane provides additional electrical safety protection during operation.

Research and Testing Laboratories

Used in high-voltage experimental environments for moving precision equipment and ensuring safe operation around electrical systems.

Professional Insulation Protection System

The crane adopts a multi-level insulation protection design using composite insulation materials and specialized insulating structures.

The system can effectively block DC voltage conduction below 2000V, providing reliable electrical isolation for electrolysis workshops and other high-voltage environments.

Heavy-Duty Lifting Capability

Designed for demanding industrial applications, the crane provides strong load-bearing performance with:

• Rated lifting capacity: 5–50 tons

• Working class: A6 or above

• High-strength steel bridge structure

It meets the requirements of continuous heavy-load material handling operations.

Comprehensive Safety Protection

The crane integrates multiple safety systems, including:

• Dual braking system

• Overload protection device

• Insulation failure monitoring and alarm system

• Limit switches

• Emergency protection functions

These features reduce operational risks and improve workplace safety.

Precise and Efficient Control

Equipped with variable frequency stepless speed regulation technology, the crane provides:

• Smooth acceleration and deceleration

• Accurate positioning

• Reduced mechanical impact

• Improved handling efficiency

Centralized cabin control allows operators to manage lifting operations safely and conveniently.

Durable Structural Design

The crane structure uses corrosion-resistant coatings and industrial-grade protection systems.

With an IP54 protection rating, it can maintain stable operation in harsh environments featuring:

• High humidity

• Dust

• Corrosive gases

• Elevated temperatures

Adapted for Special Industrial environments

QY insulation cranes are specifically designed for electrolysis workshops and similar applications requiring electrical isolation.

Optional configurations include:

• Explosion-proof components

• Special corrosion protection

• Customized insulation solutions

• Environmental protection upgrades

We provide customized insulated bridge crane solutions according to different electrolysis processes, workshop layouts, and safety requirements.

Customization Options Include

• Lifting capacity

• Crane span

• Lifting height

• Insulation grade

• Control method

• Working environment protection

• Special lifting attachments

Our engineering team develops professional crane systems to ensure electrical safety, reliable operation, and long service life in demanding industrial environments.

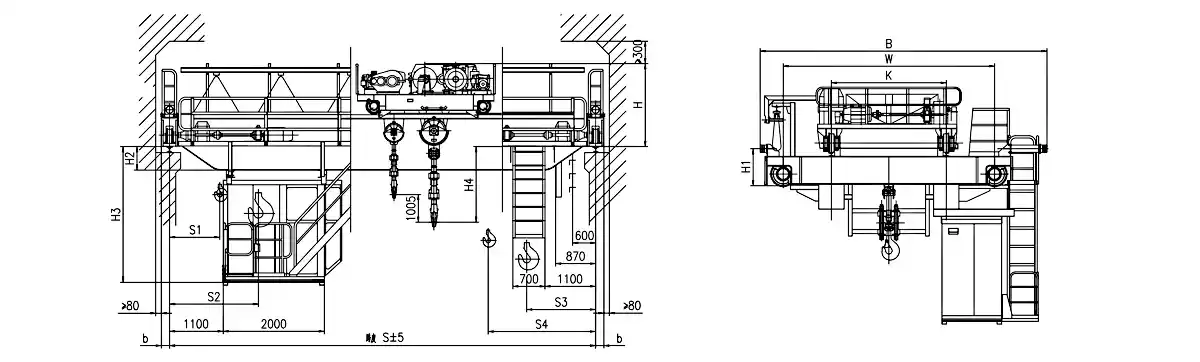

QY Type Insulation Overhead Crane Technical Parameters
