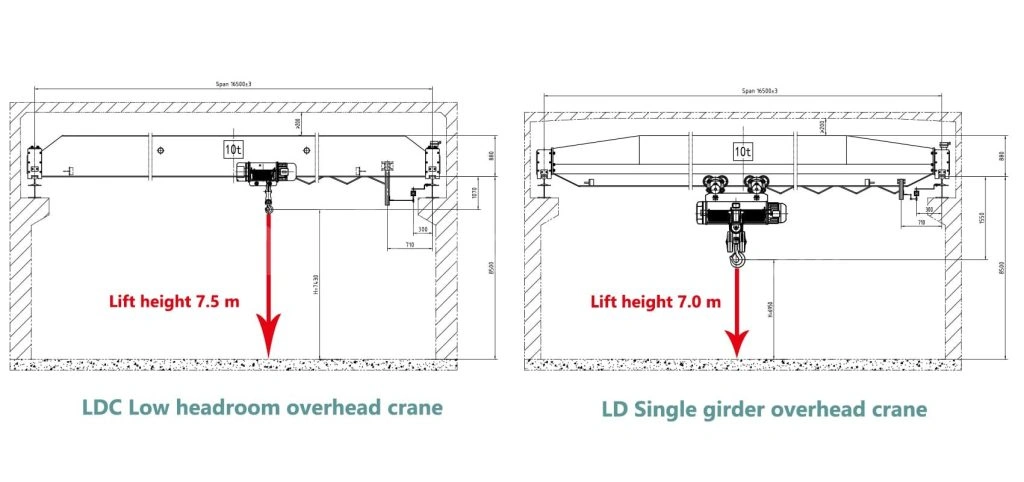

Low headroom overhead cranes are specially designed lifting solutions for factories and workshops where vertical installation space is limited. With an optimized structural design and improved hoisting arrangement, the crane reduces the overall height of the lifting system by approximately 300–500 mm compared with conventional single girder overhead cranes.

By minimizing the required installation height, this space-saving overhead crane makes better use of available building space, increases effective lifting height, and improves storage and material handling efficiency. It is an economical choice for facilities that cannot afford costly building modifications or ceiling reconstruction.

Nucleon Crane provides a wide range of low headroom bridge cranes with flexible configurations and customized solutions to meet different lifting capacities, spans, and working conditions. Contact us for a professional lifting system designed for your application.

Low headroom overhead cranes feature a compact structure and optimized mechanical layout, allowing the hook to reach closer to the roof structure and maximizing available vertical clearance. The main components include the main girder and end carriages, low headroom hoist trolley, electrical control system, and safety protection devices.

The main girder and end beams create the supporting framework of the crane. They carry the lifting load and allow the crane to move smoothly along the runway rails. The low headroom hoist trolley travels across the bridge girder and integrates the lifting mechanism, including the hoisting motor, wire rope drum, pulley system, and lifting hook. The compact trolley design helps reduce the overall crane height.

The electrical system consists of drive motors, braking devices, control panels, power supply components, and optional pendant controllers or operator cabins for convenient operation. Multiple safety systems, including lifting limit switches, travel limit switches, overload protection devices, and monitoring components, ensure reliable and safe operation.

Low headroom overhead cranes are developed for industrial environments with restricted ceiling height and limited installation space. Their compact design makes them especially suitable for old workshops, low-height factories, manufacturing plants, and warehouse facilities.

These cranes provide stable and efficient handling of raw materials, components, finished products, and maintenance equipment during daily production operations.

With flexible installation options and reliable performance, they are widely used in industries requiring efficient indoor lifting while maximizing available workspace.

The optimized crane structure reduces installation height requirements while maintaining reliable lifting performance, making it ideal for workshops with limited overhead clearance.

The simplified mechanical structure allows easier inspection, servicing, and replacement of components, reducing maintenance time and operating costs.

Lifting capacity, span length, lifting height, travel speed, and control methods can be customized according to different working environments and customer requirements.

Integrated safety systems provide real-time monitoring, overload detection, and automatic warning or shutdown functions to improve operational safety.

By mounting directly on existing building structures or runway systems, low headroom overhead cranes reduce the need for additional supporting columns and ground rails, saving valuable floor space and improving workshop utilization.
