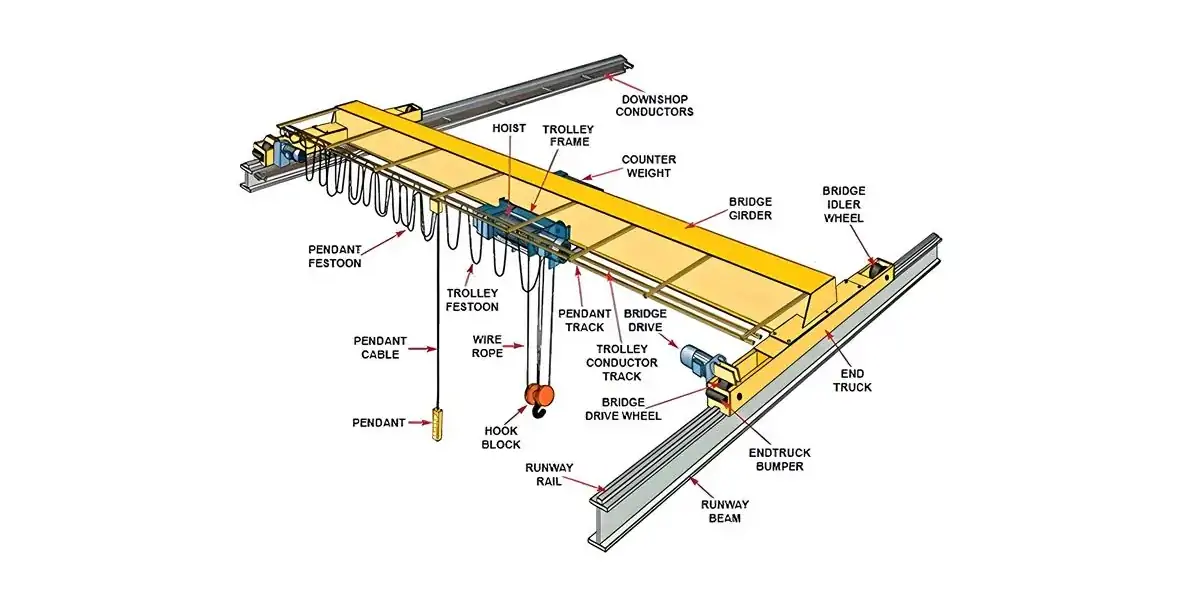

LD Type Single Girder Electric Overhead Crane is a lightweight lifting solution designed for general industrial material handling applications. It adopts a high-strength single girder structure, offering excellent load-bearing performance and stable operation.

The crane is usually equipped with CD1 or MD1 electric hoists for lifting and transporting materials. It is available with lifting capacities from 1 to 32 tons, spans ranging from 7.5 to 31.5 meters, and working classes of A3 to A4. The working class represents the crane’s operating frequency and load capacity under different working conditions.

With its simple design, reliable performance, and economical structure, LD single girder overhead crane is widely used for light and medium-duty lifting operations in workshops, warehouses, and industrial facilities.

LD type electric overhead cranes are widely applied in the following fields:

Steel Mills:

Used for lifting and transferring steel materials, production components, and other heavy loads.

Warehouses:

Applied for goods handling, stacking, and internal transportation in storage and logistics areas.

Workshops:

Suitable for equipment installation, production line material transfer, and daily lifting operations.

Material Storage Areas:

Used for vertical transportation and storage management of raw materials and finished products.

Simple Structure:

The single girder design has fewer components, making the crane economical to manufacture, easy to install, and convenient to maintain.

Low Energy Consumption:

The lightweight structure reduces power requirements while meeting normal production lifting needs, helping lower operating costs.

Space Saving Design:

The compact structure occupies less installation space while maintaining smooth running performance, improving the overall utilization of the working area.

LD Type Single Girder Electric Overhead Crane Technical Parameters
