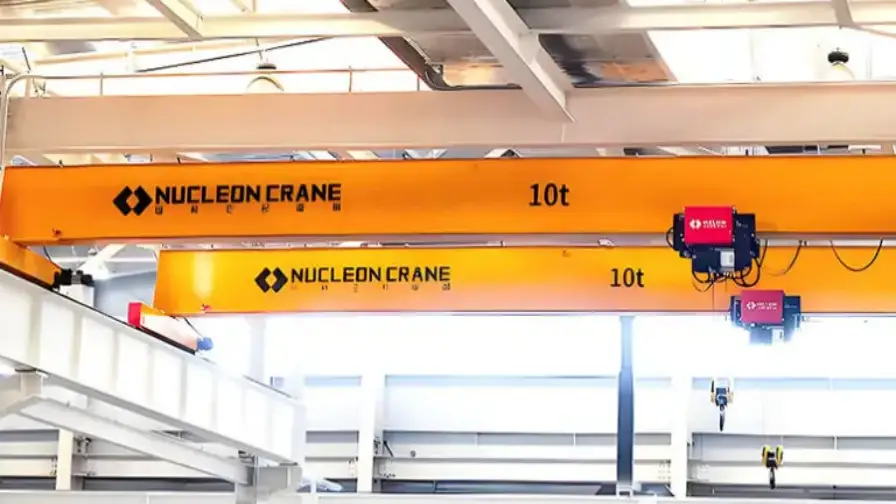

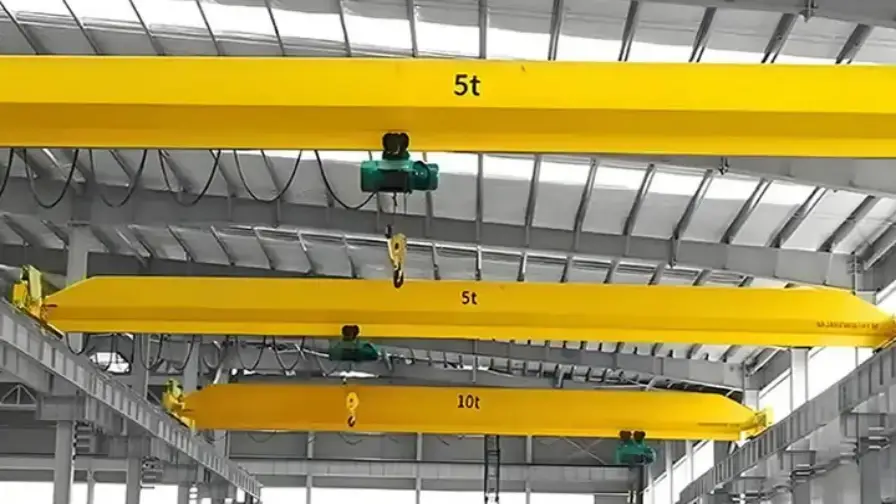

Single Girder EOT Crane is a reliable and economical overhead lifting solution designed for efficient material handling in industrial facilities. Featuring a single main girder structure combined with end carriages and an electric hoist trolley, it provides smooth vertical lifting and horizontal movement of loads.

Compared with double girder overhead cranes, single girder EOT cranes have a lighter structure, lower installation requirements, and more competitive cost advantages. They are widely applied in workshops, warehouses, manufacturing plants, assembly lines, and maintenance areas for light to medium-duty lifting operations.

With excellent flexibility and simple operation, single girder bridge cranes help improve production efficiency while reducing investment and maintenance costs.

EOT Crane Components

Main Girder
The single box-type or welded beam girder is the primary load-supporting structure of the crane. Its lightweight design reduces the overall dead weight while providing sufficient strength and stability for daily lifting operations.

End Carriages
Installed at both ends of the main girder, the end beams are equipped with traveling wheels and drive systems to ensure smooth movement along the runway rails.

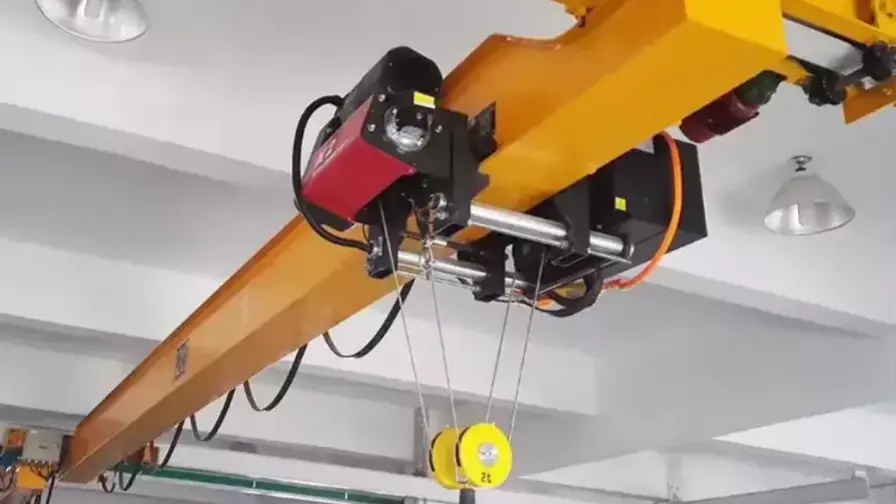

Electric Hoist and Trolley
The hoist trolley integrates the lifting mechanism, including the lifting motor, wire rope drum, and hook assembly. It travels along the main girder to achieve accurate lifting, positioning, and material transfer.

Electrical Control System
The control system includes motors, electrical cabinets, control devices, and safety protection components to ensure convenient and reliable crane operation.

Light Manufacturing Workshops
Single girder EOT cranes are suitable for handling components, tools, spare parts, and finished products in industries such as electronics, machinery manufacturing, and food processing.

Warehouse Material Handling
Used for loading, unloading, stacking, and transferring goods inside warehouses. When combined with storage racks, they help improve space utilization and logistics efficiency.

Production Assembly Lines
Provides continuous material supply for assembly operations and assists workers with component transportation during manufacturing processes.

Equipment Maintenance Facilities
Used for lifting motors, machine parts, and maintenance equipment, making repair and overhaul operations safer and more efficient.

Cost-Effective Lifting Solution
Compared with double girder overhead cranes, single girder EOT cranes feature a simpler structure, lower manufacturing costs, and easier installation, making them an ideal choice for projects with budget considerations.

Compact Structure and Space Saving
The lightweight design requires less building support and reduces installation space requirements, making it suitable for small and medium-sized workshops with limited space.

Efficient and Flexible Operation
The coordinated movement of the electric hoist and trolley enables fast lifting, transportation, and precise positioning of loads, improving overall material handling efficiency.

Easy Installation and Maintenance
The simplified structure allows convenient installation, inspection, and maintenance, reducing downtime and operating expenses.

Wide Range of Configurations
Different lifting capacities, spans, lifting heights, control methods, and operating speeds can be customized according to specific working conditions.

To provide the most suitable Single Girder EOT Crane design, please share the following technical information. Our engineering team will develop a customized lifting solution based on your actual requirements.

Lifting Capacity
           Available lifting capacity range: 1–32 tons.

Span and Runway Length
           Provide the required crane span and runway track dimensions according to your workshop layout.
           Recommended span range: 7.5–31.5 meters.

Working Environment
           Please provide details about the operating conditions, including:
           • Ambient temperature
           • Humidity level
           • Dust concentration
           • Outdoor or indoor installation
           • Special working conditions such as corrosive or hazardous environments
           This information helps determine suitable protection levels and component materials.

Lifting Height and Traveling Speed
           Specify the required:
           • Maximum lifting height
           • Hoisting speed
           • Trolley traveling speed
           • Crane traveling speed
           These parameters ensure the crane meets your production efficiency requirements.

Power Supply and Control Method
           Please provide:
           • Voltage
           • Frequency
           • Power supply type
           • Preferred operation method
           Available control options include:
           • Pendant control
           • Wireless remote control
           • Operator cabin control
