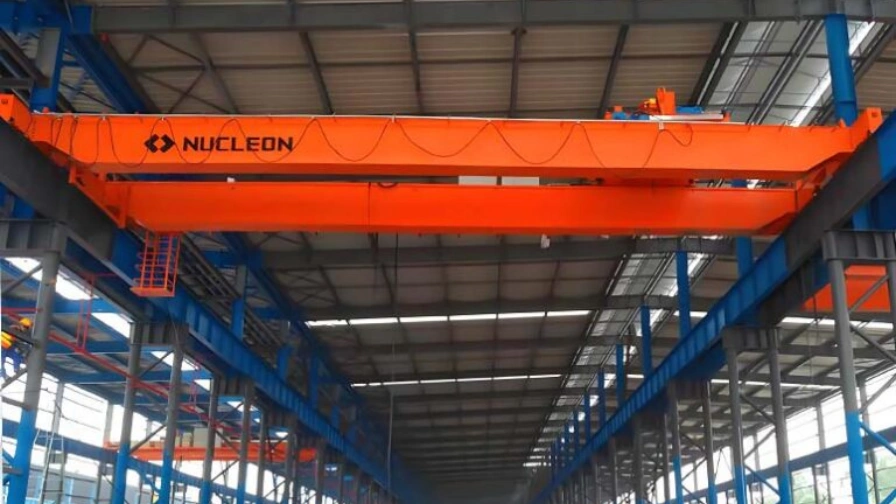

QD Double Girder Overhead Crane is a widely used heavy-duty lifting equipment designed for efficient material handling in industrial environments. It mainly consists of two parallel main girders, a lifting trolley, crane traveling mechanism, and electrical control system.

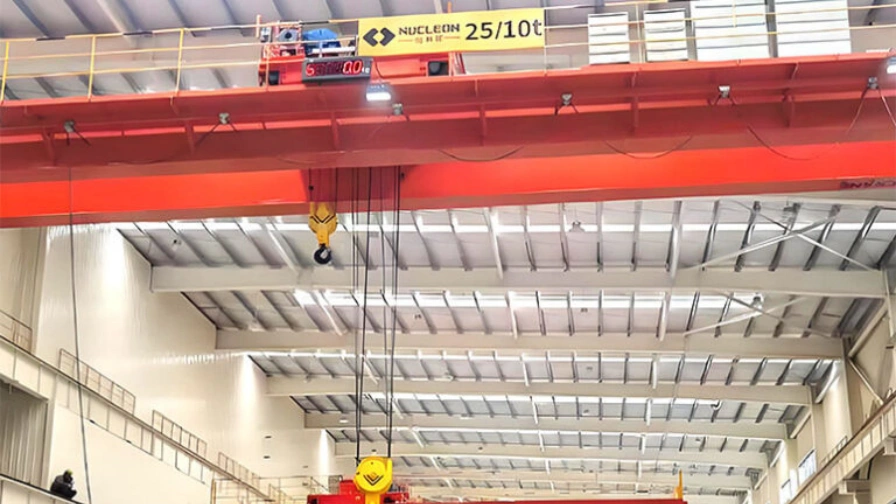

The lifting mechanism of QD overhead crane adopts a hook as the lifting device. The trolley runs on rails installed above the main girders, allowing horizontal movement along the crane span direction. The main girders are connected with box-type end beams, which usually adopt a sectional design with bolts or pins in the middle. This structure makes assembly, disassembly, and transportation more convenient.

QD double girder bridge crane provides three operation methods for users to choose according to different working requirements, including ground pendant control, wireless remote control, and cabin operation.

The crane cabin is available in open and enclosed types. It is equipped with adjustable seats, insulated floor mats, and tempered glass windows to improve operator safety and comfort. According to customer requirements, additional configurations such as air conditioning, communication systems, and sound equipment can also be provided.

With a working class range of A3 to A7 and lifting capacities from 3 to 250 tons, QD overhead cranes are suitable for various heavy lifting operations. They are widely applied in factories, warehouses, freight yards, and other industrial locations for loading, unloading, and material transportation.

The crane is designed to operate under ambient temperatures from -20℃ to 40℃ with relative humidity not exceeding 85%. It is not suitable for environments containing flammable, explosive, or highly corrosive gases unless specially customized.

Due to its strong lifting capacity, stable performance, and wide application range, QD double girder overhead crane is an ideal solution for heavy material handling tasks, helping improve production efficiency and reduce manual handling workload.

Large Lifting Capacity

QD double girder overhead crane is designed for heavy-duty lifting operations and can handle large equipment, steel products, and other heavy materials to meet high-intensity working requirements.

Wide Operating Range

With flexible span and lifting height configurations, the crane can cover a large working area and adapt to different industrial application scenarios.

Stable and Reliable Performance

The robust steel structure and advanced manufacturing technology ensure excellent strength, durability, and long-term stable operation.

Convenient Operation

Equipped with modern control systems, the crane supports wireless remote control, ground operation, or cabin control, providing flexible and user-friendly operation.

Easy Maintenance

The crane structure allows convenient access to major components, making inspection and maintenance easier while reducing downtime and operating costs.

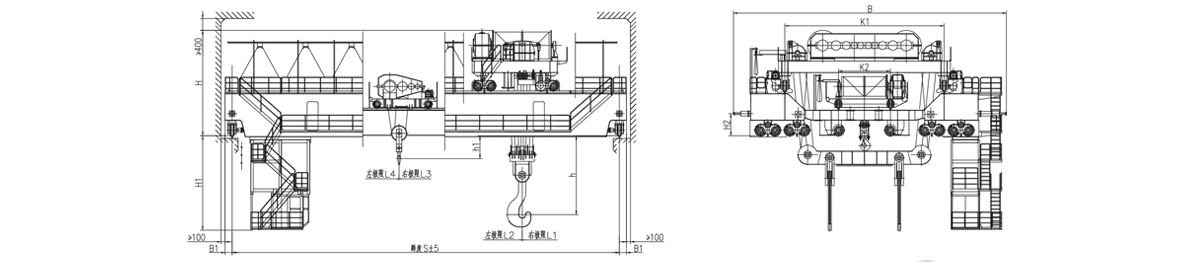

QD Type Trolley Double Beam Overhead Crane Technical Parameters
