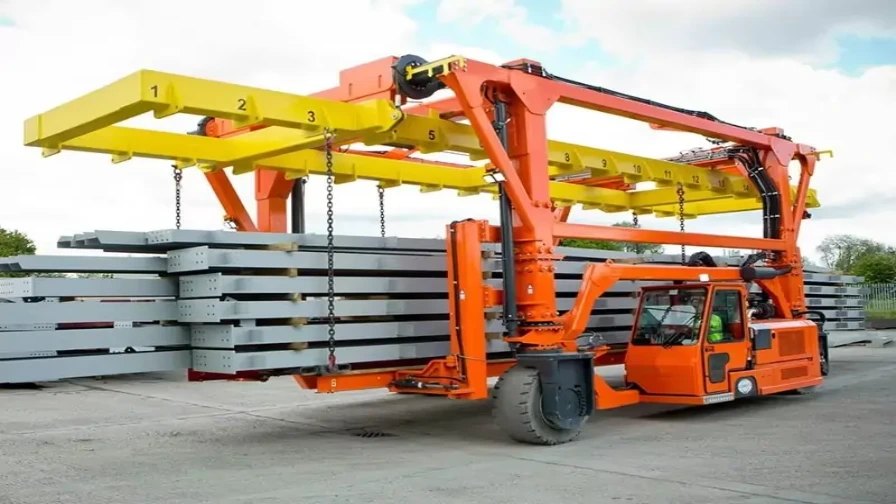

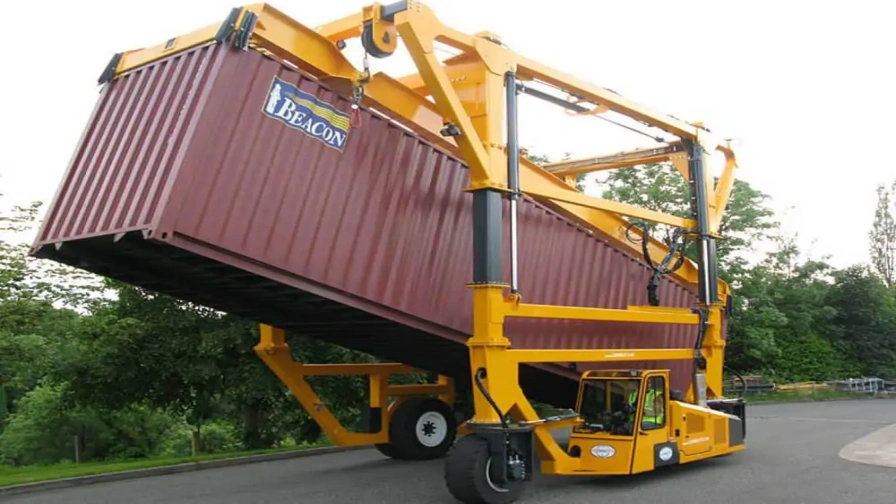

The Container Straddle Carrier Crane is a specialized container handling machine widely used in ports, container terminals, logistics yards, and multimodal transportation hubs. It is designed for efficient lifting, stacking, and horizontal transportation of standard ISO containers without requiring fixed rails or additional lifting equipment.
By straddling the container and lifting it directly from the ground or trailer chassis, the straddle carrier provides flexible and efficient container handling operations. Its compact design allows better space utilization, making it suitable for container yards with limited operating space and complex transportation conditions.
Container straddle carrier cranes are widely used in container handling and yard logistics due to their flexibility, high stacking efficiency, and ability to operate without fixed tracks.
They provide efficient solutions for container loading, unloading, stacking, and short-distance transportation while reducing space requirements. The lifting capacity, operating span, and drive configuration can be customized according to different working environments and handling requirements.

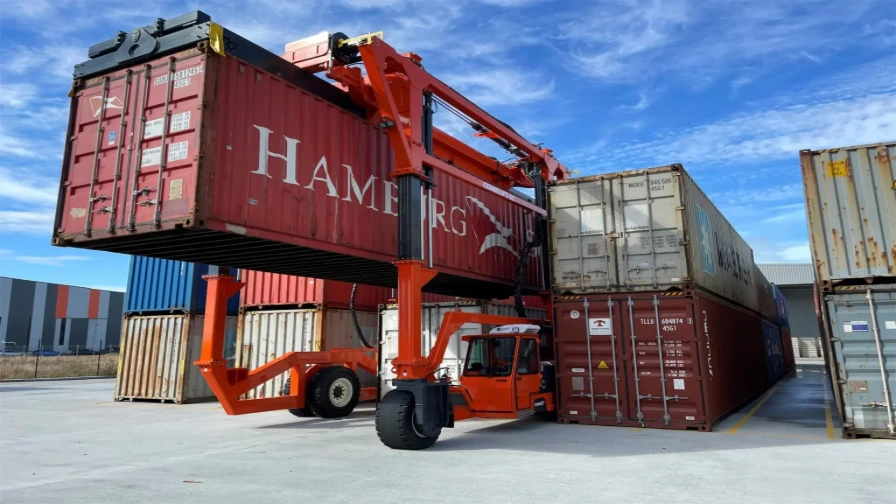

Seaports and Container Terminals
Used for container loading and unloading, stacking, and internal transportation, helping improve terminal handling efficiency and cargo turnover speed.
Inland Dry Ports and Rail Terminals
Applied for container transfer between railway and road transportation systems, supporting efficient multimodal logistics operations.
Logistics Warehouses and Distribution Centers
Suitable for handling standard ISO containers and mobile storage units, providing flexible solutions for temporary storage and on-site transportation management.
Manufacturing and Industrial Storage Yards
Used for moving heavy cargo such as large equipment packages, steel structure containers, and industrial materials, reducing dependence on forklifts and traditional cranes.
Mining, Energy, and Project Cargo Sites
Suitable for transporting oversized and overweight equipment modules, improving material handling efficiency and supporting large-scale project construction schedules.
High Flexibility
The container straddle carrier features independent steering and flexible movement capabilities, allowing it to operate efficiently in narrow container yards, temporary storage areas, and locations with complex traffic layouts.
Efficient Stacking Capability
It supports multi-layer container stacking, typically from 1–3 layers or higher according to customer requirements, helping maximize yard space utilization and improve storage efficiency.
Stable Handling Performance
Equipped with hydraulic lifting systems and heavy-duty tires, the straddle carrier ensures smooth lifting, stable transportation, and reliable load handling even under demanding working conditions.
Simple and Convenient Operation
The equipment adopts an ergonomic control system to improve operator comfort and efficiency. Optional remote control and automated operation systems are available to meet modern intelligent logistics requirements.
Reduced Infrastructure Investment
Unlike rail-mounted container cranes, straddle carriers do not require fixed tracks, large supporting structures, or complex foundation construction, significantly reducing installation costs and improving deployment flexibility.
| Lifting Capacity (t) | 10 | 16 | 20/10 | 32/10 | 36/16 | 50/10 | ||
|---|---|---|---|---|---|---|---|---|
| Span (m) | 18-35 | |||||||
| Lifting Height (m) | 10-13 | |||||||
| Duty Class | A5-A8 | |||||||
| Speed (m/min) | Lifting | 8.5 | 7.9 | 7.2/10.4 | 7.2/10.4 | 7.8/10.5 | 6/10.4 | |
| Trolley | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 | ||
| Crane | 40 | 38 | 38 | 40 | 40 | 38 | ||
| Motor | Lifting | YZR180L-6/17 | YZR225M-8/26 | YZR225M-8/26 YZR200L-6/26 |
YZR280S-10/42 YZR200L-6/26 |
YZR280M-10/55 YZR225M-6/34 |
YZR280M-10/55 YZR200L-6/26 |
|
| Trolley | YZR132M1-6/2.5*2 | YZR132M2-6/4*2 | YZR132M2-6/4*2 | YZR132M1-6/4*2 | YZR132M1-6/6.3*2 | YZR132M1-6/6.3*2 | ||
| Crane | YZR160L-6/13*2 | YZR160L-6/13*2 YZR160M1-6/6.3*4 |
YZR160L-6/13*2 YZR160M2-6/8.5*4 |
YZR160M2-6/8.5*4 | YZR160L-6/13*4 YZR160M2-6/8.5*4 |
YZR160L-6/13*4 | ||
| Weight (t) | Trolley | 9 | 9.5 | 12 | 16 | 18 | 24 | |
| Total | 63.2-100 | 78-106 | 79-120 | 95-108 | 106-155 | 195 | ||
| Wheel Pressure (KN) | 225-295 | 255-373 | 208-289 | 324-334 | 314-363 | 452 | ||
| Steel Track | 43kg/m | 50kg/m | ||||||
| Power Source | 3-phase A.C 380V 50HZ (As your demand) | |||||||
