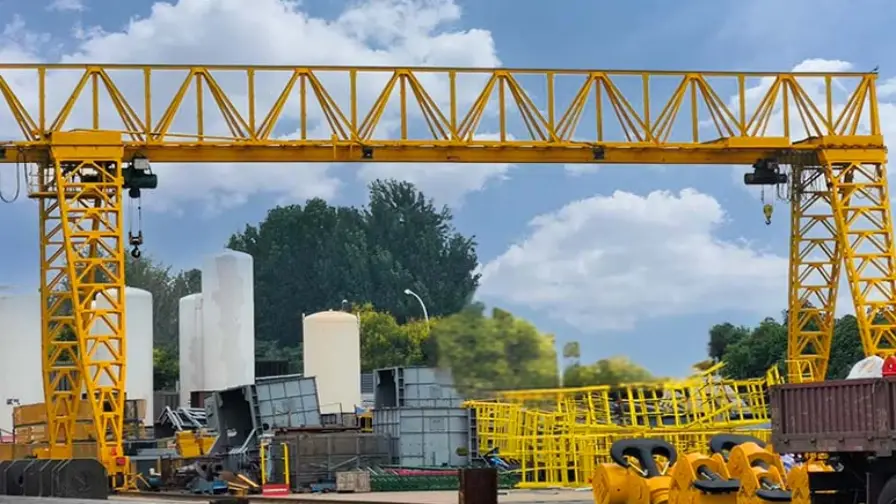

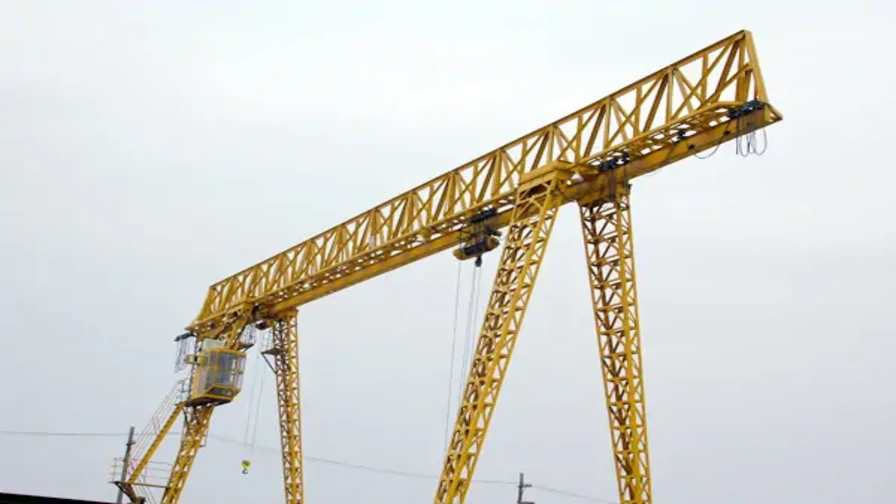

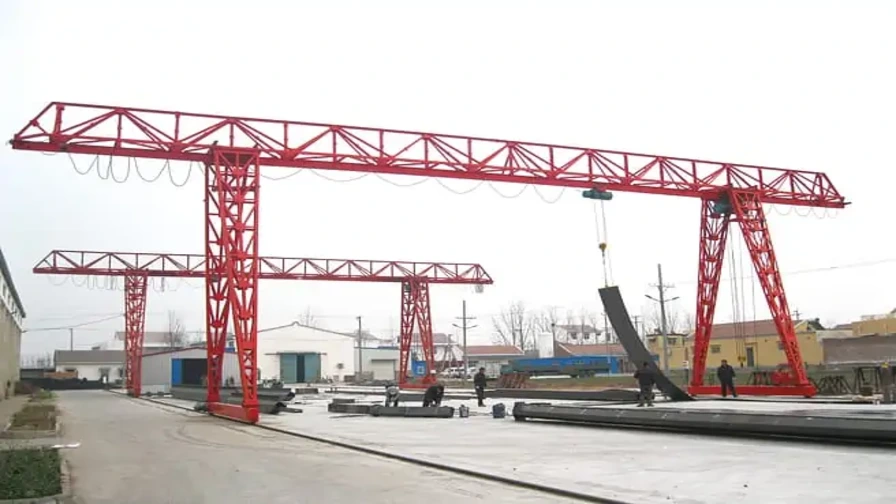

The MH single girder truss gantry crane is a medium and small-sized track-mounted lifting equipment featuring a lightweight truss structure design. It mainly consists of a gantry frame, hoisting mechanism, traveling mechanism, and electrical control system.

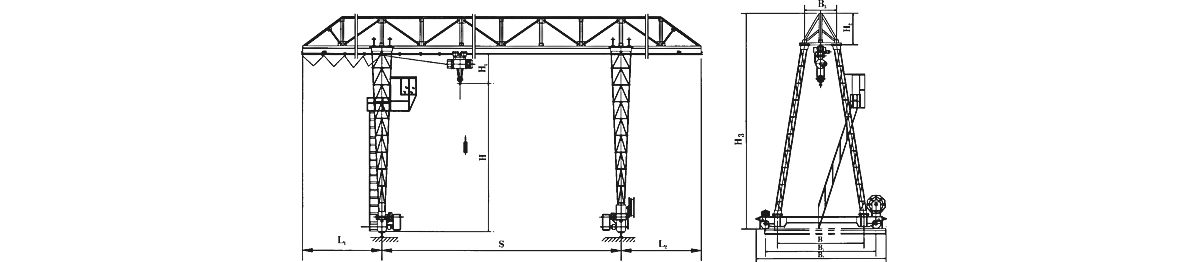

The gantry frame includes the main beam, supporting legs, and lower crossbeam. The main girder adopts a truss structure, which provides high strength while reducing the overall weight of the crane. This design improves wind resistance, reduces foundation requirements, and makes transportation, installation, and maintenance more convenient.

The hoisting mechanism uses an electric wire rope hoist, such as CD1 or MD1 type, which runs along the lower flange of the main beam to complete vertical lifting and horizontal movement of materials. The crane supports both ground control and cabin operation, providing flexible operation options according to different working conditions.

With a lifting capacity range of 3-32 tons and customizable span configurations, the MH single girder truss gantry crane is suitable for indoor and outdoor material handling applications. It is especially suitable for open areas, windy environments, and sites with limited foundation conditions.

Factory Workshops:
Used for production line material transfer, equipment handling, and workshop logistics operations.

Warehouses and Freight Yards:
Suitable for cargo loading, unloading, stacking, and short-distance transportation.

Ports and Wharves:
Applied for handling goods and materials in open port areas, improving loading and unloading efficiency.

Construction Sites:
Used for lifting steel structures, concrete components, and other construction materials.

Mining and Metallurgy:
Suitable for ore handling, raw material transportation, and heavy material lifting operations.

Lightweight Truss Structure:
The truss beam design reduces crane weight compared with traditional box girders while maintaining sufficient strength and rigidity, lowering foundation requirements.

Excellent Wind Resistance:
The open-frame truss structure reduces wind resistance and improves stability, making it suitable for outdoor operations and windy areas.

Flexible Operation Modes:
Supports ground control, wireless remote control, and cabin operation to meet different working environment requirements.

Wide Environmental Adaptability:
           Suitable for various working conditions such as factories, warehouses, mines, and outdoor yards, with a typical operating temperature range of -20℃ to +40℃.

Safe and Reliable Performance:
Equipped with overload protection, travel limit switches, anti-hook collision protection, phase loss protection, and overcurrent protection devices to ensure safe operation.

Easy Installation and Maintenance:
The modular structure simplifies transportation, assembly, and maintenance, reducing installation time and operating costs.

Customizable Design:
The crane can be customized according to lifting capacity, span, lifting height, control mode, and site conditions to provide suitable lifting solutions.
