If you’re running a port, shipyard or inland terminal, you’ve probably run into this headache: you need heavy lifting capacity for ship side loading‑unloading, yet regular gantry cranes can’t deliver large‑angle slewing coverage, and fixed pedestal jib cranes lack track‑mount mobility.

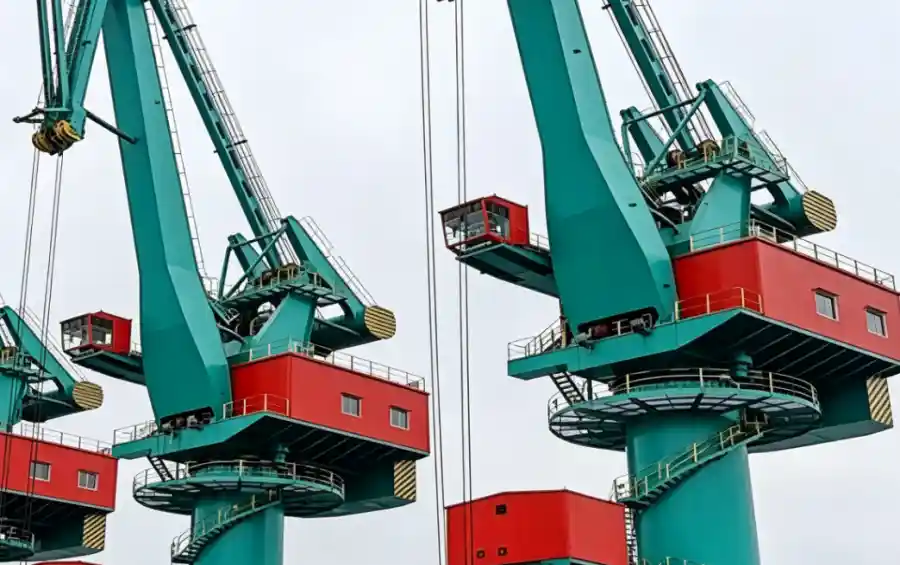

That’s exactly where Nucleon portal boom crane shines. Built on a portal leg base, this unit travels along dock rails, supports 360‑degree full rotation and boom luffing, so it can handle bulk cargo, steel, general goods and grab operation across a wide quay area without re‑locating vessels.
1. What Makes Portal Boom Crane Stand Out for Port Work？
Many buyers mix it up with standard gantry or stationary jib cranes, but its real‑world advantages show up on‑site.
Portal under‑pass design: trucks and rail wagons can drive straight underneath the crane base, saving precious terminal space.
Rail‑travel + full 360° slewing + luffing boom: flexible reach to different ship hatches.
Heavy‑duty working class A5‑A7, built for long‑hour continuous outdoor port operation.
Supports hook, grab bucket, spreader, multiple lifting attachments for mixed‑cargo jobs.
Full frequency conversion control, stable movement even under strong coastal wind conditions.
It is not only for big seaports; medium‑sized inland river terminals, ship repair yards also get huge value out of this machine.
2. Typical Real‑World Application Scenarios
Seaport & Inland River Terminals
Loading and unloading bulk grain, coal, ore, steel coils, general packaged goods between ship and shore. Grab bucket configuration works great for bulk material handling.
Ship‑Repair Shipyard
Lifting heavy hull components, engine parts onto or off vessels. The large slewing radius lets one crane serve multiple berths.
Multi‑Purpose Cargo Wharf
One machine switches between hook lifting and grab work, ideal for terminals handling mixed cargo types.
Practical tip for buyers: confirm local wind load, rail gauge, required outreach before quotation. These three parameters decide the core design of your portal boom crane.
3. Key Technical Points You Need To Know
Nucleon portal boom crane covers capacity from 5 ton up to 80 ton, customizable outreach, lifting height and rail span.
Drive system: AC frequency conversion, PLC control, operator cabin or wireless remote optional
Steel structure: heavy‑duty Q235‑B steel, anti‑corrosion paint for marine coastal environment
Safety devices: overload limiter, wind‑speed alarm, rail clamping device, travel limit switches
Two mainstream structures: single‑boom type and four‑link luffing boom for heavy‑duty high‑frequency operation
Don’t blindly chase maximum tonnage. Many terminal operators over‑spec and waste budget. Match capacity to your most‑frequent cargo weight, then reserve reasonable margin.
4. What Should You Consider Before Ordering？
Berth rail condition: existing rails or need new rail foundation
Max outreach & lifting height based on your vessel size
Local environment: coastal salt spray? Strong wind season? We adjust anti‑corrosion and wind‑protection setup accordingly
Lifting tools: hook only, or need grab, container spreader?
Power supply condition on site
If you are not 100 % sure about site parameters, our engineering team can give professional suggestion based on your terminal layout description.
