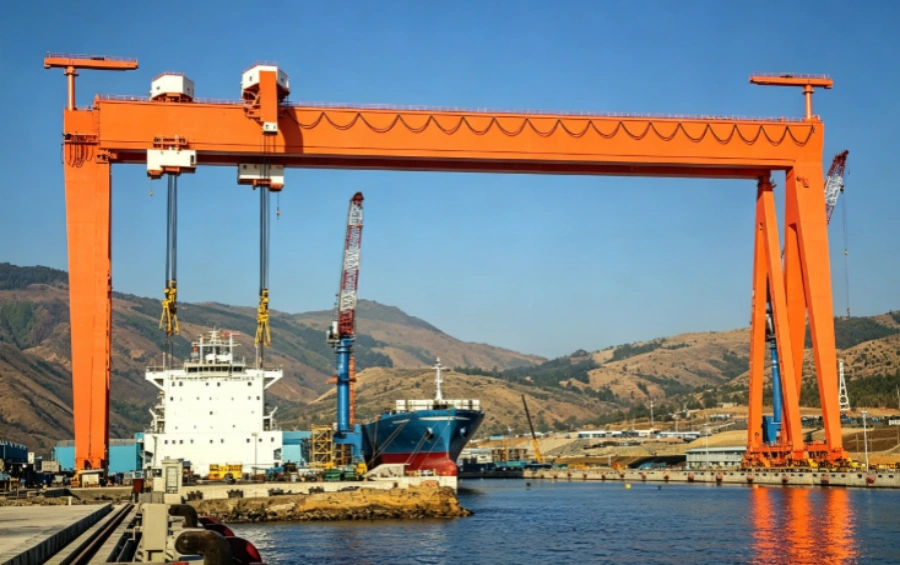

What is the Shipbuilding Gantry Crane?
Think of a shipbuilding gantry crane not just as a lifting tool, but as a massive, mobile assembly workshop. It is a heavy-duty gantry crane that runs on fixed rails along the shipyard's building berth or dry dock.
Unlike standard container cranes, shipbuilding gantry cranes are uniquely engineered for construction tasks. They typically feature a dual-trolley system (upper and lower trolleys) that can operate independently or work together in perfect synchronization. This allows them to perform highly specialized tasks like lifting mega-blocks, precise end-to-end joining, and even mid-air segment turning (flipping) for welding.
How Does It Solve Your Shipyard's Pain Points?
If you are looking to upgrade your facility, a shipbuilding gantry crane addresses three major operational bottlenecks:
●Handling Mega-Blocks Efficiently: Modern ships are built using massive prefabricated sections. A dual-lift gantry crane can safely hoist these heavy blocks, eliminating the need for risky and time-consuming multi-crane lifts.
●Space and Time Savings: The ability to flip hull segments in mid-air means you no longer need dedicated ground space and separate equipment for turning racks. This streamlines your workflow significantly.
●Maximizing Ground Space: Because the crane operates on elevated rails, the entire ground area beneath it remains completely clear. You can use this space for material storage, truck transport, or parallel assembly tasks.
Safety and Reliability: Built for Harsh Coastal Environments
Shipyards are located in tough coastal environments with high winds and corrosive salt spray. Safety is the top priority when moving hundreds of tons of steel.
●Advanced Wind-Proofing: These cranes are equipped with multiple independent safety devices, including hydraulic rail clamps, storm anchors, and wind speed alarms. They are designed to securely lock onto the tracks and withstand severe typhoons or gales.
●Heavy-Duty Anti-Corrosion: To ensure a long lifespan, the steel structures are treated with premium marine-grade anti-corrosion coatings, protecting the equipment from harsh saltwater environments.
●Precision Control: Advanced PLC synchronized control systems ensure that when two trolleys lift a single load, they move at the exact same speed, preventing dangerous uneven load distribution.
Buyer’s Guide: 4 Key Parameters to Confirm Before Purchasing
To ensure you don't overpay or buy an under powered machine, you must clarify these four parameters before requesting a quote:
1.Lifting Capacity: What is the maximum weight of your heaviest ship block? (Don't forget to include the weight of the spreader beam and lifting gear).
2.Span: What is the exact width of your building berth or dry dock?
3.Lifting Height: How high do you need to lift the blocks? Ensure there is enough clearance for the tallest vessel under construction.
4.Ground Foundation: Crucial Step! Shipbuilding gantry cranes require a solid concrete foundation and precise rail tracks. Always consult with the manufacturer regarding ground bearing capacity before construction.
Frequently Asked Questions (FAQ)
Q: Can the crane perform the "air turning" (flipping) operation for hull segments?
A: Yes. By utilizing the upper and lower trolleys in coordination, the crane can smoothly flip large hull segments in mid-air, which is essential for efficient welding and assembly.
Q: How does the crane handle extreme weather like typhoons?
A: Safety is paramount. Our cranes are equipped with heavy-duty rail clamps, ground anchors, and wind speed sensors. When wind speeds exceed safe limits, the crane automatically triggers safety protocols to lock itself securely in place.
Q: Can the crane be customized for specific lifting tools?
A: Absolutely. We can customize lifting gear based on your hull segments, including specialized C-hooks for steel plates, electromagnetic lifters, and custom spreader beams.
Contact Us for Free Consultation
Upgrading your shipyard's lifting capacity is a significant step toward higher productivity and safety. Our engineering team is ready to help you design the perfect solution tailored to your dock's layout.
Get a Free Layout Proposal: Send us your parameters (Lifting Capacity, Span, Lifting Height), and we will provide a preliminary general arrangement drawing within 24 hours.
