Many factories use large overhead cranes for all lifting work, which causes efficiency issues. Overhead cranes are slow and require waiting, especially for frequent small lifts at fixed workstations.

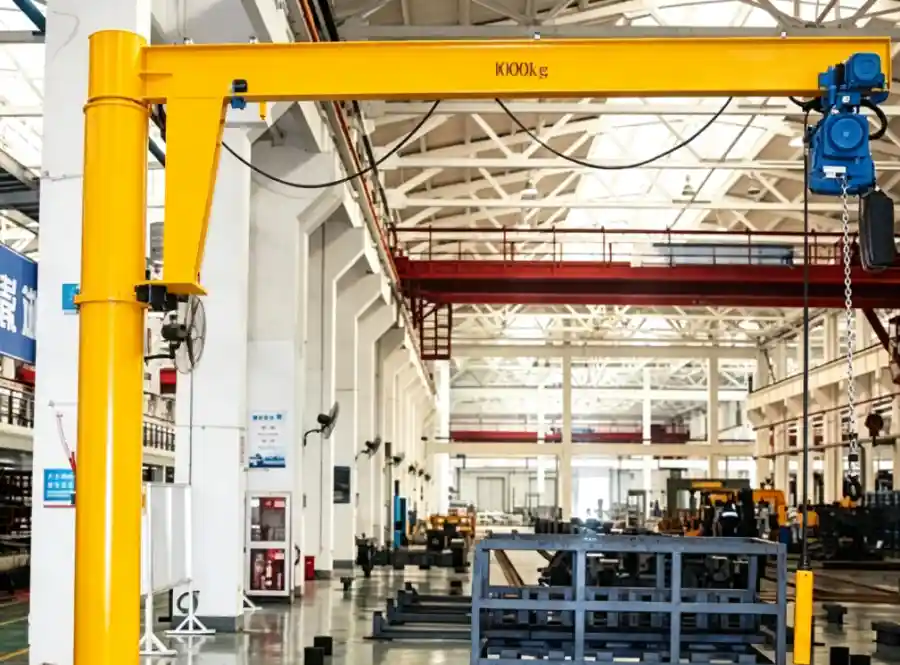

This freestanding jib crane mounts firmly on the floor with full 360° rotation. Unlike 180° wall jib cranes or unstable portable cranes, it works independently without walls or ceiling rails. Ideal for high-frequency light & medium lifting at local workstations.

This crane solves many practical pain points that general lifting equipment cannot handle:

Complete independence: As a floor-fixed standalone unit, it requires no wall reinforcement or roof installation. It can be placed in the center of work areas, open workshops or isolated processing zones.

Full 360° no-dead-angle coverage: The rotating jib arm covers a full circular working area, offering far more flexibility than half-rotation wall jib cranes for material picking and placement.

Release overhead crane pressure: It undertakes daily repetitive workstation lifting, greatly reducing the waiting time and workload of main overhead cranes and improving overall production speed.

Compact and space-saving: Vertical floor-standing structure occupies minimal ground space and will not block workshop passages, forklift routes or production lines.

Smooth and precise operation: Matched with standard electric chain hoists, it ensures stable lifting, low swing and accurate positioning, ideal for precise assembly and mold handling.

Common Working Scenarios

The floor mounted slewing jib crane is highly targeted for fixed-station repeated lifting tasks:

Mechanical processing stations: Fast loading and unloading of workpieces for lathes, machining centers and drilling machines.

Product assembly lines: Auxiliary lifting of parts and semi-finished products to replace manual heavy handling.

Mold maintenance workshops: Daily replacement, disassembly and maintenance of small and medium molds.

Factory maintenance areas: On-site lifting and installation of mechanical components and equipment accessories.

Small warehouse handling zones: Fixed-point stacking and short-distance transfer of regular heavy goods.

Standard Technical Specifications

All parameters are real industrial standard ranges for accurate model selection:

Lifting capacity: 0.25 ton – 10 ton

Jib working radius: 2m – 10m customizable

Standard lifting height: 2m – 12m

Slewing angle: 360° full rotation

Rotation mode: Manual slewing / electric slewing optional

Supporting hoist: Electric chain hoist

Working duty: Light to medium duty for frequent daily workstation operation

How to Select the Right Model?

Simple but key selection tips to avoid mismatched equipment:

Confirm your maximum lifting weight and reserve a proper safety margin.

Measure the actual required working radius to determine the jib arm length.

Choose manual rotation for light-load occasional use; select electric rotation for heavy-load and high-frequency work.

Check your floor concrete condition to ensure stable foundation installation.

How to Get an Accurate Quotation?

Send us the following basic information to get a customized solution and fast pricing:

- Required lifting tonnage

- Jib radius and lifting height

- Manual or electric rotation type

- Specific working environment and usage frequency

If your workshop is troubled by low-efficiency centralized crane scheduling and frequent fixed-point lifting work, the floor mounted slewing jib crane is your most cost-effective upgrade. It simplifies on-site handling, saves labor and improves production efficiency. Contact us to get a tailored solution for your workstation.
