QDY Metallurgy Overhead Crane is a heavy-duty lifting solution specially developed for harsh metallurgical working environments, including steel plants, foundries, casting workshops, and non-ferrous metal production facilities.

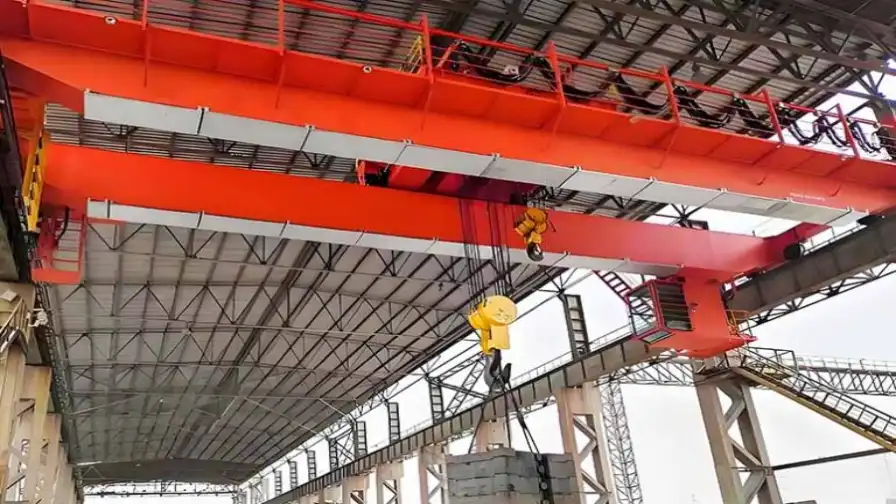

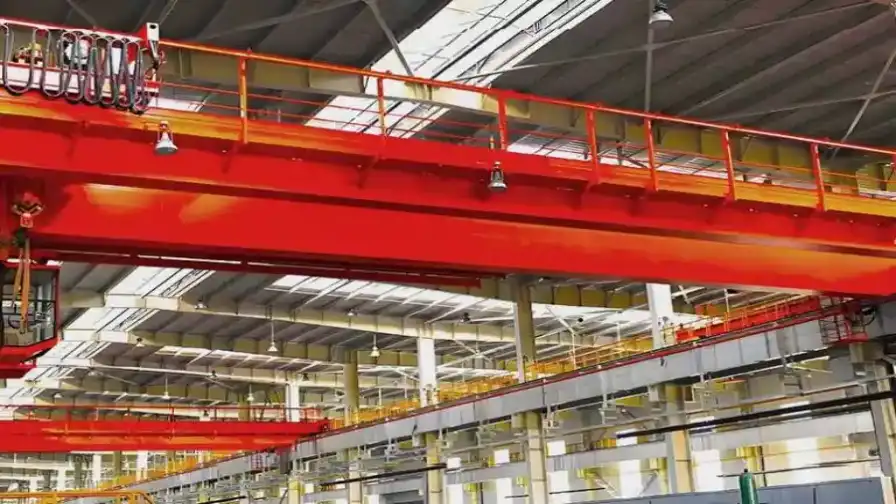

Designed for extreme load handling and continuous operation, this crane adopts a robust double girder bridge structure equipped with main and auxiliary hook systems. It is capable of handling heavy loads up to 74/20 tons, making it suitable for demanding applications such as molten metal transportation, casting operations, forging processes, and steel production.

Manufactured according to international standards including ISO, FEM, and GB, the crane features high-temperature resistant components and reliable structural performance. Heat-resistant design enables stable operation in environments with ambient temperatures up to 50°C.

The crane adopts a closed-track traveling structure and high-strength steel components, providing excellent durability in dusty, humid, and high-temperature industrial conditions. With Class H insulation, IP55 protection, and advanced safety systems, QDY metallurgy cranes ensure reliable performance under A7/M7 heavy-duty working conditions.

The modular design allows flexible customization of crane span (10.5–31.5 m) and lifting height (up to 22 m) according to different plant layouts and production requirements.

For different lifting capacities, the crane can be configured with:

• Electric hoist solutions for small tonnage applications (below 16 tons)

• Specialized metallurgical trolley systems for heavy-duty lifting requirements (16 tons and above)

The traveling mechanism adopts a dedicated metallurgy-grade motor reducer, with optional variable frequency speed control systems for smoother operation and improved positioning accuracy.

QDY Metallurgy Overhead Crane is widely used in high-temperature and heavy-load industrial processes, including:

Steel Plants and Foundries

Used for lifting and transporting molten metal ladles, steel billets, slabs, castings, and heavy scrap materials during steel production.

Casting and Metallurgical Workshops

Provides reliable handling solutions for furnace charging, molten material transfer, casting operations, and production line transportation.

Rolling Mills

Used for moving steel products, production equipment, and heavy components throughout rolling and processing operations.

Non-Ferrous Metal Industry

Suitable for aluminum, copper, and other metal processing facilities requiring stable lifting performance under harsh conditions.

High-Temperature Production Areas

Designed for operation near furnaces and heating equipment where temperatures may reach up to 50°C, while maintaining safe and continuous operation.

High Temperature Resistance Design

The crane is specially designed for metallurgical environments with high thermal loads. Key components include:

• Heat-resistant lifting hooks

• High-temperature motors

• Class H insulation systems

• Thermal protection components

These features ensure reliable operation in extreme industrial conditions.

Heavy-Duty Lifting Capability

The double girder structure combined with main and auxiliary hook systems provides strong load capacity and stability, meeting the requirements of continuous heavy material handling.

Maximum lifting capacity can reach:

74/20 tons

Reliable Safety Protection System

The crane integrates multiple safety technologies, including:

• Dual braking systems

• Overload protection devices

• Limit switches

• Safety monitoring systems

These protection functions improve operational safety and reduce risks during heavy-load lifting.

Dust and Moisture Protection

With IP55 protection, the electrical system and key components are effectively protected against dust and moisture, ensuring stable operation in challenging industrial environments.

Modular and Customized Structure

The crane adopts a modular design, allowing flexible configuration according to customer requirements:

• Crane span: 10.5–31.5 m

• Lifting height: up to 22 m

• Hook configuration

• Trolley type

• Control system

• Speed control method

This makes the crane adaptable to different metallurgical production processes.

Special Metallurgical Travel System

The traveling mechanism uses a dedicated motor reducer designed for metallurgy applications, providing:

• Strong overload capability

• Stable operation

• Improved durability

• Optional variable frequency control

Low Maintenance and Long Service Life

High-strength steel structures, optimized components, and modular design simplify inspection and maintenance while reducing downtime and operating costs.

We provide customized QDY metallurgy overhead crane solutions according to different steel plants, foundries, and high-temperature production environments.

Our engineering team can optimize crane designs based on:

• Lifting capacity

• Crane span

• Lifting height

• Working duty class

• Furnace layout

• Temperature conditions

• Material handling requirements

• Control system configuration

Customized solutions ensure safe molten metal handling, reliable continuous operation, and long service life in demanding metallurgical applications.

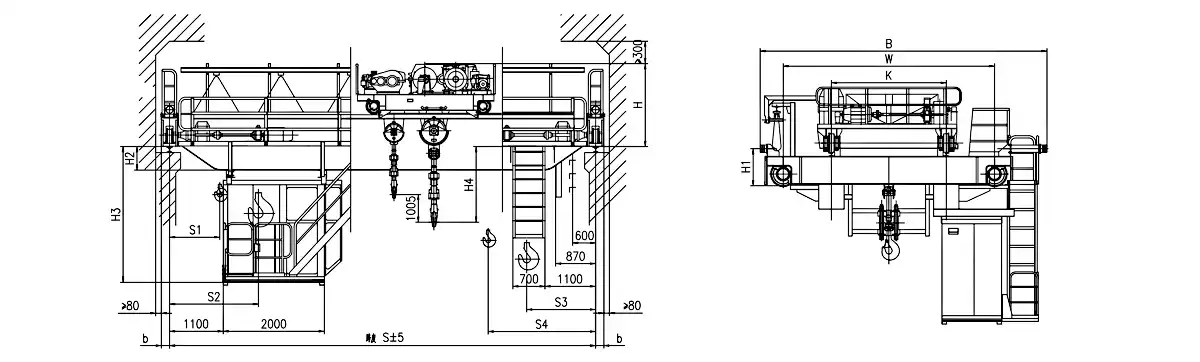

QDY Type Metallurgy Overhead Crane Technical Parameters
